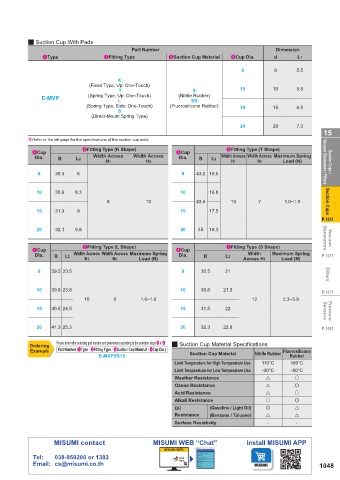

Q Suction Cup With Pads
Part Number Dimension
1Type 2Fitting Type 3Suction Cup Material 4Cup Dia. d L1

8 8 5.5
K
(Fixed Type, Up: One-Touch)
T S 10 10 5.8
E-MVP (Spring Type, Up: One-Touch) (Nitrile Rubber)
SS
L
(Spring Type, Side: One-Touch) (Fluorosilicone Rubber) 15 15 6.5
S
(Direct-Mount Spring Type)
20 20 7.3
15
E Refer to the left page for the specifications of the suction cup units
2Fitting Type (K Shape) 2Fitting Type (T Shape)
4Cup 4Cup
Dia. B L2 Width Across Width Across Dia. B L2 Width Across Width Across Maximum Spring
H1 H2 H1 H2 Load (N) Vacuum Generators / Filters Suction Cups /
8 30.3 8 8 43.2 16.5

10 30.6 8.3 10 16.8
8 10 43.5 10 7 1.0~1.9 Suction Cups
15 31.3 9 15 17.5
P.1031
20 32.1 9.8 20 45 18.3

2Fitting Type (L Shape) 2Fitting Type (S Shape) Generators Vacuum
4Cup 4Cup
Dia. B L2 Width Across Width Across Maximum Spring Dia. B L2 Width Maximum Spring P.1071
H1 H2 Load (N) Across H1 Load (N)
8 39.5 23.5 8 30.5 21 Filters

10 39.8 23.8 10 30.8 21.3 P.1071
10 8 1.0~1.9 12 2.3~3.9
15 40.5 24.5 15 31.5 22 Sensors Pressure

20 41.3 25.3 20 32.3 22.8 P.1081

Please order after selecting part number and parameters according to the selection steps 1 to 4. Q Suction Cup Material Specifications
Ordering
Example Part Number (1Type · 2Fitting Type · 3Suction Cup Material · 4Cup Dia.) Suction Cup Material Nitrile Rubber Fluorosilicone
E-MVPSS15 Rubber
Limit Temperature for High Temperature Use 110°C 180°C
Limit Temperature for Low Temperature Use -30°C -50°C
Weather Resistance △ G
Ozone Resistance △ P
Acid Resistance △ G
Alkali Resistance G P
Oil (Gasoline / Light Oil) P △
Resistance (Benzene / Toluene) △ △
Surface Resistivity - -
