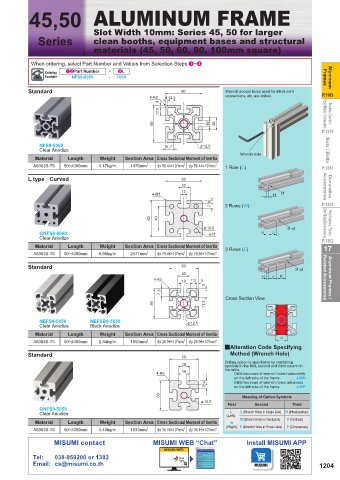

45,50 ALUMINUM FRAME
Slot Width 10mm: Series 45, 50 for larger
Series clean booths, equipment bases and structural
materials (45, 50, 60, 90, 100mm square)
When ordering, select Part Number and Values from Selection Steps 1~3.
Aluminum Frames 12Part Number - - 1000 Frames Aluminum
3L
NFS8-6060

P.1183 Standard 4-R3 4 4 12.5 60 Wrench access holes used for Blind Joint P.1183
connections, etc. are drilled.
Brackets / Corners / Sheet Metals / Connectors 12.5 Sheet Metals / Connectors Brackets / Corners /

P.1215 60 10 20 P.1215
Nuts / Bolts Material Length Weight Section Area Cross Sectional Moment of Inertia Wrench Hole Nuts / Bolts
NFS8-6060
φ12.5
6 7
Clear Anodize
4
4
P.1243 A6063S-T5 50~4000mm 4.17kg/m 1478mm 2 ℓ x 56.44×10 mm 4 ℓ y 56.44×10 mm 4 1 Row (C) P.1243
Decorative Accessories L type · Curved 4-R3 60 H d Accessories Decorative
20
10
P.1258 6 2 Rows (W) P.1258
7
Panel Fasteners / Panels / Door Sliding Slot Accessories 60 40 φ10.5 2-d Door Sliding Slot Accessories Panel Fasteners / Panels /

Clear Anodize
P.1262 GNFS8-6060 4-f7 H J P.1262
17 Material Length Weight Section Area Cross Sectional Moment of Inertia 3 Rows (E) 17
4
4
A6063S-T6 50~4000mm 6.96kg/m 2577mm 2 ℓ x 79.86×10 mm 4 ℓ y 79.86×10 mm 4
Aluminum Frames / Related Accessories Standard 4-R3 50 11.3 3 3 H J K 3-d Related Accessories Aluminum Frames /
20
10

50 6 7 11.3 Cross Section View

NEFS8-5050 NEFSB8-5050 φ12.5
Clear Anodize Black Anodize
Material Length Weight Section Area Cross Sectional Moment of Inertia
4
4
A6063S-T5 50~4000mm 2.84kg/m 1053mm 2 ℓ x 26.98×10 mm 4 ℓ y 26.98×10 mm 4 d
■ Alteration Code Specifying
Standard 50 Method (Wrench Hole)
Drilling option is specifiable by combining
20 symbols in the first, second and third column in
4-R3 10 the table.

Drills two rows of wrench holes horizontally
on the left side of the frame. -LWH
6 Drills two rows of wrench holes crisscross
7 on the left side of the frame. -LWP
50 Meaning of Option Symbols
φ10.5 First Second Third
GNFS8-5050
L
Clear Anodize (Left) C (Wrench Holes in Single Line) H (Horizontal)
Material Length Weight Section Area Cross Sectional Moment of Inertia R W (Wrench Holes in Two Lines) V (Vertical)
4
A6063S-T6 50~4000mm 4.40kg/m 1633mm 2 ℓ x 38.16×10 mm 4 ℓ y 38.16×10 mm 4 (Right) E (Wrench Holes in Three Lines) P (Crisscross)
4
