19

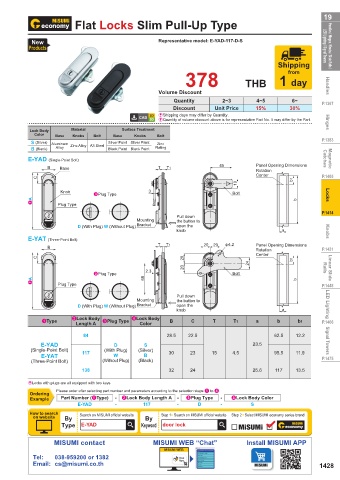

Flat Locks Slim Pull-Up Type
New Representative model: E-YAD-117-D-S
Products LED Lighting / Signal Towers Handles / Hinges / Knobs / Slide Rails /
Shipping
378 THB 1 day
from

Volume Discount Handles
Quantity 2~3 4~5 6~ P.1367
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. Hinges
Lock Body Material Surface Treatment
Color Base Knobs Bolt Base Knobs Bolt
S (Silver) Aluminum Zinc Alloy A3 Steel Sliver Paint Sliver Paint Zinc P.1383
B (Black) Alloy Black Paint Black Paint Plating
E-YAD (Single-Point Bolt) Catches Magnetic
B Base T T1 45 Panel Opening Dimensions
Rotation
Center P.1405
C b1
19
Knob 3 Bolt
3Plug Type Locks
2A Plug Type b
P.1414
Pull down
Mounting the button to
D (With Plug) W (Without Plug) Bracket open the
knob a Knobs
E-YAT (Three-Point Bolt)
T T1 20 20 φ4.2 Panel Opening Dimensions
B
Rotation P.1431
Center
C 20 b1
24
20 Rails Linear Slide
2.3
3Plug Type Bolt
2A Plug Type 65 b P.1448
Pull down
Mounting the button to
Material: SUS304 D (With Plug) W (Without Plug) Bracket open the LED Lighting
Surface Treatment: Buffed knob a
1Type 2Lock Body 3Plug Type 4Lock Body B C T T1 a b b1 P.1466
Length A Color
84 28.5 22.5 62.5 12.2
E-YAD D S 23.5 Signal Towers
(Single-Point Bolt) 117 (With Plug) (Silver) 30 23 15 4.5 95.5 11.9
E-YAT W B
(Three-Point Bolt) (Without Plug) (Black) P.1475
138 32 24 25.6 117 13.5
ELocks with plugs are all equipped with two keys
Ordering Please order after selecting part number and parameters according to the selection steps 1 to 4.
Example Part Number (1Type) - 2Lock Body Length A - 3Plug Type - 4Lock Body Color
E-YAD - 117 - D - S
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type E-YAD Keyword door lock

MISUMI contact MISUMI WEB “Chat” Install MISUMI APP
MISUMI WEB
Tel: 038-959200 or 1382
Email: cs@misumi.co.th 1428

110310654839
