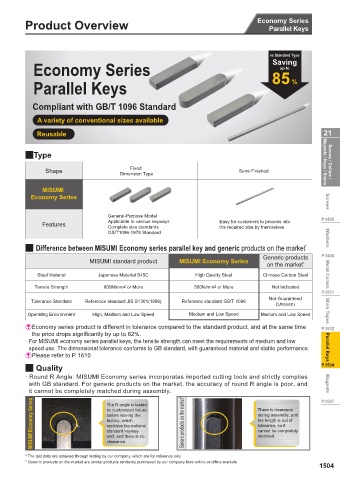

Product Overview Economy Series
Parallel Keys
vs Standard Type
Economy Series Saving
up to
Parallel Keys 85 %

Compliant with GB/T 1096 Standard

A variety of conventional sizes available

Reusable 21

QType

Fixed
Shape Dimension Type Semi-Finished Magnets / Keys / Shims Screws / Collars /

MISUMI
Economy Series Screws

General-Purpose Model P.1495
Features Applicable to various keyways Easy for customers to process into
Complete size standards
the required size by themselves
GB/T1096-1979 Standard Washers
Q Difference between MISUMI Economy series parallel key and generic products on the market *
Generic products P.1498
MISUMI standard product MISUMI Economy Series
on the market *
Steel Material Japanese Material S45C High Quality Steel Chinese Carbon Steel Metal Collars
Tensile Strength 600N/mm 2 or More 500N/mm 2 or More Not Indicated
P.1501
Not Guaranteed
Tolerance Standard Reference standard JIS B1301(1996) Reference standard GB/T 1096
(Uneven)
Operating Environment High, Medium and Low Speed Medium and Low Speed Medium and Low Speed Shim Tapes
EEconomy series product is different in tolerance compared to the standard product, and at the same time P.1502
the price drops significantly by up to 82%.
· For MISUMI economy series parallel keys, the tensile strength can meet the requirements of medium and low
speed use. The dimensional tolerance conforms to GB standard, with guaranteed material and stable performance. Parallel Keys
EPlease refer to P.1610
Q Quality P.1504
· Round R Angle: MISUMI Economy series incorporates imported cutting tools and strictly complies
with GB standard. For generic products on the market, the accuracy of round R angle is poor, and Magnets
it cannot be completely matched during assembly. P.1507
MISUMI Economy Series by customized fixture Generic products on the market* There is clearance
The R angle is tested
during assembly, and
before leaving the
the length is out of
factory, which
tolerance, so it
matches the national
standard keyway
cannot be completely
matched.
well, and there is no
clearance.
* The test data are obtained through testing by our company, which are for reference only
* Generic products on the market are similar products randomly purchased by our company from online or offline markets
