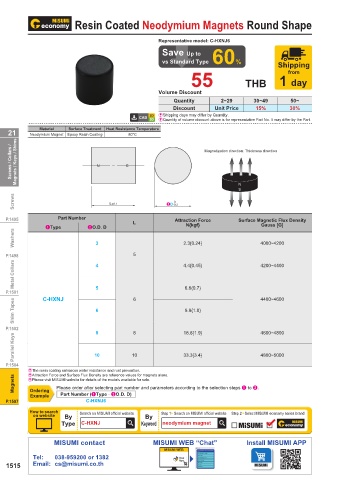

Resin Coated Neodymium Magnets Round Shape
Representative model: C-HXNJ6
Save Up to
vs Standard Type 60% Shipping
55 THB 1 day
from

Volume Discount
Quantity 2~29 30~49 50~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
Surface Treatment
21 Neodymium Magnet Epoxy Resin Coating Heat Resistance Temperature
80°C
Screws / Collars / Magnets / Keys / Shims N S Magnetization direction: Thickness direction

S N
Screws L±0.1 2D-0.2
0

P.1495 Part Number L Attraction Force Surface Magnetic Flux Density
1Type 2O.D. D N{kgf} Gauss [G]
Washers 3 2.3{0.24} 4000~4200

P.1498 5
Metal Collars 4 4.4{0.45} 4200~4400

P.1501 C-HXNJ 5 6 6.8{0.7} 4400~4600
Shim Tapes 6 9.8{1.0}

P.1502 8 8 18.6{1.9} 4600~4800
Parallel Keys 10 10 33.3{3.4} 4800~5000

P.1504
E The resin coating enhances water resistance and rust prevention.
EAttraction Force and Surface Flux Density are reference values for magnets alone.
Magnets EPlease visit MISUMI website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type · 2O.D. D)
P.1507 C-HXNJ6
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-HXNJ Keyword neodymium magnet
