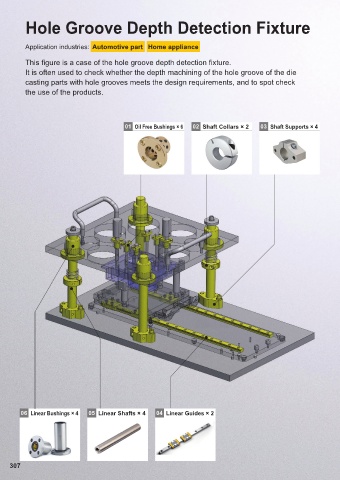

Hole Groove Depth Detection Fixture Reference price
Application industries: Automotive part Home appliance

This figure is a case of the hole groove depth detection fixture.
It is often used to check whether the depth machining of the hole groove of the die
casting parts with hole grooves meets the design requirements, and to spot check
the use of the products.

01 Oil Free Bushings × 6 P.413 02 Shaft Collars × 2 P.436
01 Oil Free Bushings × 6 02 Shaft Collars × 2 03 Shaft Supports × 4
Mounting Type Round Flanged I.D. 20mm
I.D. 8mm Thickness 12mm
Total Length 20mm O.D. 40mm
C-MUTZ8-20 C-SCSAW20-12

219 139

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 219 219 1 139 139
2 175 350 10 118 1,180

03 Shaft Supports × 4 P.432 04 Linear Guides × 2 P.313
I.D. 20mm Nominal model 15
C-SHFMQ20 Length 390mm
E-GMLG15-390-B2

133 2,065

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 133 133 1 2,065 2,065
30 113 3,390 5 1,733 8,665

05 Linear Shafts × 4 P.345 06 Linear Bushings × 4 P.353
One End Tapped Diameter of Inscribed Circle 20mm
Shaft Dia. 20mm O.D. (φ) 32mm
Length 210mm Total Length 42mm
Thread Nominal M6 No Surface Treatment
PSFJT20-210-M6 Standard Counterbored Holes
C-LMF20UU
451 137
06 Linear Bushings × 4 05 Linear Shafts × 4 04 Linear Guides × 2
THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 451 451 1 137 137
10 116 1,160

* All products prices are without tax. For prices reference, please visit MISUMI official website.
