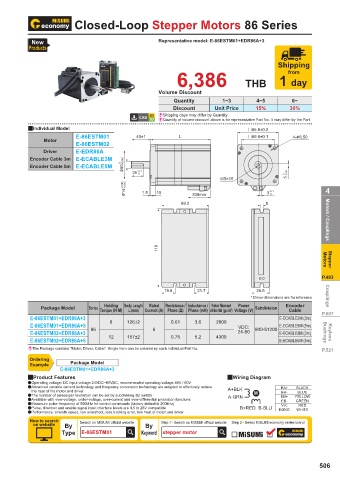

Closed-Loop Stepper Motors 86 Series
New Representative model: E-86ESTM01+EDR86A+3
Products
Shipping
6,386 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
QIndividual Model #85.8±0.2
E-86ESTM01 40±1 L #69.6±0.1 4- φ 6.50
Motor
E-86ESTM02
Driver E-EDR86A
Encoder Cable 3m E-ECABLE3M -0.045
Encoder Cable 5m E-ECABLE5M 0
φ 60 25 +0.1 -0.03
0
M5×15 0 5
-0.003 -0.012
φ 14 1.5 10 300min 3 +0.1 4
0
69.2 5 Motors / Couplings

116 Motors Stepper

P.493

19.6 21.7 26.5
* Driver dimensions are for reference Couplings
Resistance / Inductance / Rotor Moment
Power
Holding
Rated
Package Model Series Torque (N·M) Body Length Current (A) Phase (Ω) Phase (mH) of Inertia (g.cm²) Voltage (V) Subdivision Encoder
L (mm)
Cable
E-86ESTM01+EDR86A+3 E-ECABLE3M (3m) P.507
E-86ESTM01+EDR86A+5 8 126±2 0.61 3.6 2800 VDC: E-ECABLE5M (5m)
E-86ESTM02+EDR86A+3 86 6 24-80 800-51200 E-ECABLE3M (3m) Bushings Keyless
E-86ESTM02+EDR86A+5 12 157±2 0.75 5.2 4300 E-ECABLE5M (5m)
EThe Package contains “Motor, Driver, Cable”. Single Item can be ordered by each individual Part No. P.521
Ordering
Example Package Model
E-86ESTM01+EDR86A+3
QProduct Features QWiring Diagram
IOperating voltage: DC input voltage 24VDC~80VDC, recommended operating voltage 48V / 60V
I Advanced variable current technology and frequency conversion technology are adopted to effectively reduce EA+ BLACK
the heat of the motor and driver A+BLK M EA- BLUE
IThe number of pulses per revolution can be set by subdividing dip switch A-GRN EB+ YELLOW
IAvailable with over-voltage, under-voltage, over-current and over-differential protection functions EB- GREEN
IMaximum pulse frequency of 500kHz for control commands (factory default is 200kHz) Vcc RED
IPulse, direction and enable signal input interface levels are 4.5 to 28V compatible B+RED B-BLU EGND WHITE
IPerformance: smooth speed, low overshoot, less tracking error, low heat of motor and driver
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type E-86ESTM01 Keyword stepper motor

506

110310618749
