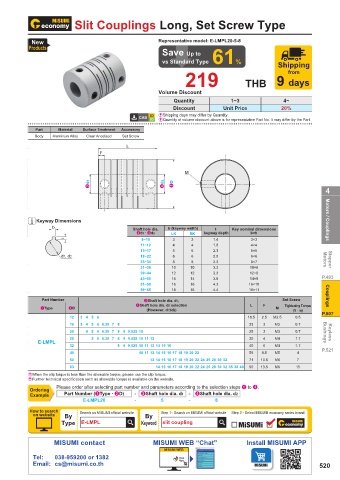

Slit Couplings Long, Set Screw Type
New Representative model: E-LMPL20-5-8
Products
Save Up to
vs Standard Type 61% Shipping
219 THB 9 days
from

Volume Discount
Quantity 1~3 4~
Discount Unit Price 20%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Part Material Surface Treatment Accessory
Body Aluminum Alloy Clear Anodized Set Screw
L
F

M
3d1 4d2 2D
4

Keyway Dimensions Motors / Couplings
b Shaft hole dia. b (keyway width) t Key nominal dimensions
3d1 · 4d2 LK RK keyway depth b×h
8~10 3 3 1.4 3×3
t
11~12 4 4 1.8 4×4
13~17 5 5 2.3 5×5
d1, d2 18~22 6 6 2.8 6×6
23~30 8 8 3.3 8×7 Motors Stepper
31~38 10 10 3.3 10×8
39~44 12 12 3.3 12×8
45~50 14 14 3.8 14×9 P.493
51~58 16 16 4.3 16×10
59~65 18 18 4.4 18×11
Part Number 3Shaft hole dia. d1, Set Screw Couplings
4Shaft hole dia. d2 selection L F Tightening Torque
1Type 2D (However, d1≤d2) M (N · m)
12 3 4 5 6 18.5 2.5 M2.5 0.5 P.507
16 3 4 5 6 6.35 7 8 23 3 M3 0.7
20 4 5 6 6.35 7 8 9 9.525 10 25 3 M3 0.7 Bushings Keyless
25 5 6 6.35 7 8 9 9.525 10 11 12 30 4 M4 1.7
E-LMPL
32 8 9 9.525 10 11 12 14 15 16 40 6 M4 1.7
P.521
40 10 11 12 14 15 16 17 18 19 20 22 56 8.5 M5 4
50 12 14 15 16 17 18 19 20 22 24 25 28 30 32 71 10.5 M6 7
63 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 40 90 13.5 M6 15
E When the slip torque is less than the allowable torque, please use the slip torque.
E Further technical specification such as allowable torque is available on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2D) - 3Shaft hole dia. d1 - 4Shaft hole dia. d2
E-LMPL20 - 5 - 8
