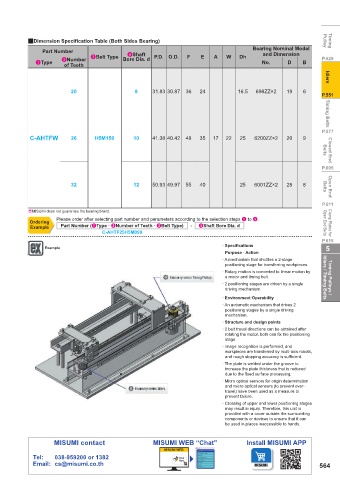

QDimension Specification Table (Both Sides Bearing) Pulley Timing
Part Number 4Shaft Bearing Nominal Model
and Dimension
2Number 3Belt Type Bore Dia. d P.D. O.D. F E A W Dh P.529
1Type of Teeth No. D B

20 8 31.83 30.87 36 24 16.5 698ZZ×2 19 6 Idlers
P.551

Timing Belts
P.577
C-AHTFW 26 H5M150 10 41.38 40.42 48 35 17 22 25 6200ZZ×2 20 9 Belts Closed End

P.605

32 12 50.93 49.97 55 40 25 6001ZZ×2 28 8 Belts Open End

P.611
E MISUMI does not guarantee the bearing brand.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering Open End Belts Clamp Plates for
Example Part Number (1Type · 2Number of Teeth · 3Belt Type) - 4Shaft Bore Dia. d
C-AHTF25H5M090
P.615
· Specifications
Example 5
Purpose · Action
· A mechanism that shuttles a 2-stage
positioning stage for transferring workpieces.
· Rotary motion is converted to linear motion by
a motor and timing belt. Idlers / Timing Belts Timing Pulleys /
· 2 positioning stages are driven by a single
driving mechanism.
· Environment·Operability
· An automatic mechanism that drives 2
positioning stages by a single driving
mechanism.
· Structure and design points
· 2 belt travel directions can be obtained after
rotating the motor, both can fix the positioning
stage.
· Image recognition is performed, and
workpieces are transferred by multi-axis robots,
and rough stopping accuracy is sufficient.
· The plate is welded under the groove to
increase the plate thickness that is reduced
due to the fixed surface processing.
· Micro optical sensors for origin determination
and micro optical sensors (to prevent over-
travel) have been used as a measure to
prevent failure.
· Crossing of upper and lower positioning stages
may result in injury. Therefore, this unit is
provided with a cover outside the surrounding
components or devices to ensure that it can
be used in places inaccessible to hands.
