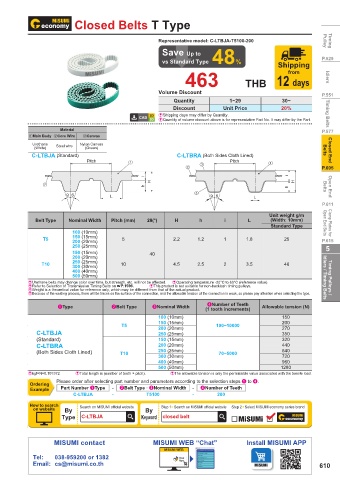

Closed Belts T Type
Representative model: C-LTBJA-T5100-200 Pulley Timing
Save Up to
vs Standard Type 48% Shipping P.529
463 THB 12 days Idlers
from

Volume Discount
P.551
Quantity 1~29 30~
Discount Unit Price 20%
E Shipping days may differ by Quantity. Timing Belts
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material P.577
1Main Body 2Core Wire 3Canvas
Urethane Steel wire Nylon Canvas
(White) (Green) Belts
C-LTBJA (Standard) C-LTBRA (Both Sides Cloth Lined) Closed End
Pitch 1 Pitch 1
2 3 P.605
i i
H H
2 h h Belts Open End
θ θ L 3 θ θ L
P.611
Unit weight g/m
Belt Type Nominal Width Pitch (mm) 2θ(°) H h i L (Width: 10mm)
Standard Type Open End Belts Clamp Plates for
100 (10mm)
T5 150 (15mm) 5 2.2 1.2 1 1.8 25 P.615
200 (20mm)
250 (25mm) 5
150 (15mm) 40
200 (20mm)
T10 250 (25mm) 10 4.5 2.5 2 3.5 46
300 (30mm)
400 (40mm)
500 (50mm) Idlers / Timing Belts
EUrethane belts may change color over time, but strength, etc. will not be affected. EOperating temperature -20°C to 60°C (reference value). Timing Pulleys /
ERefer to Selection of Transmission Timing Belts on DP.1596. EThis product is not suitable for non-backlash timing pulleys.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
EBecause of the welding process, there will be traces on the surface of the connection, and the allowable tension at the connection is weak, so please pay attention when selecting the type.
4Number of Teeth
1Type 2Belt Type 3Nominal Width (1 tooth increments) Allowable tension (N)
100 (10mm) 150
150 (15mm) 200
T5 200 (20mm) 100~10000 270
C-LTBJA 250 (25mm) 350
(Standard) 150 (15mm) 320
C-LTBRA 200 (20mm) 440
(Both Sides Cloth Lined) T10 250 (25mm) 70~5000 640
300 (30mm) 720
400 (40mm) 960
500 (50mm) 1280
Ekgf=N×0.101972 ETotal length is (number of teeth × pitch). EThe allowable tension is only the permissible value associated with the tensile load.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number 1Type - 2Belt Type · 3Nominal Width - 4Number of Teeth
C-LTBJA - T5100 - 200
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-LTBJA Keyword closed belt

MISUMI contact MISUMI WEB “Chat” Install MISUMI APP
MISUMI WEB
Tel: 038-959200 or 1382
Email: cs@misumi.co.th 610

110310410129
