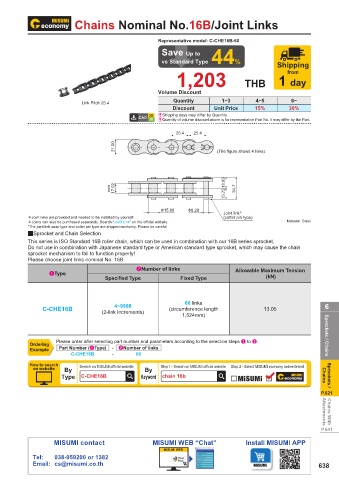

Page 643 - MISUMI Thailand Economy Series

Chains Nominal No.16B/Joint Links

Representative model: C-CHE16B-60
Save Up to
vs Standard Type 44% Shipping
1,203 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Link Pitch 25.4
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

25.4 25.4
21.00 (The figure shows 4 links)

18.95
min 17.02 15.75 34.7

φ 15.88 φ 8.28
Joint link ＊
＊Joint links are provided and needed to be installed by yourself. (cotter pin type)
＊Joints can also be purchased separately. Search “Joint Link” on the official website. Material: Steel
*The joint link snap type and cotter pin type are shipped randomly. Please be careful
QSprocket and Chain Selection
This series is ISO Standard 16B roller chain, which can be used in combination with our 16B series sprocket.
Do not use in combination with Japanese standard type or American standard type sprocket, which may cause the chain
sprocket mechanism to fail to function properly!
Please choose joint links nominal No. 16B.
2Number of links Allowable Maximum Tension
1Type
Specified Type Fixed Type (kN)

60 links
4~9998
C-CHE16B (2-link increments) (circumference length 13.05 6
1,524mm)

Please order after selecting part number and parameters according to the selection steps 1 to 2. Sprockets / Chains
Ordering
Example Part Number (1Type) - 2Number of links
C-CHE16B - 60
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-CHE16B Keyword chain 16b Chains Sprockets /

P.621

Attachments
P.641
Chains With
