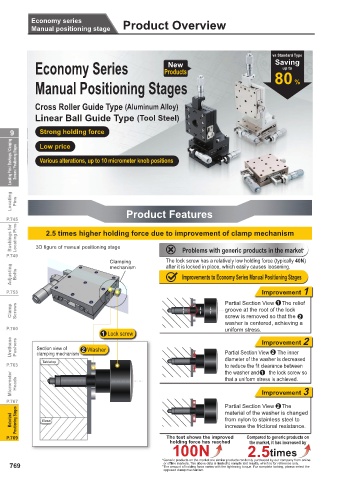

Economy series Product Overview Product Overview Economy series
Manual positioning stage Manual positioning stage
vs Standard Type
Economy Series Products Saving
New
up to
Manual Positioning Stages 80 %

Cross Roller Guide Type (Aluminum Alloy)
Linear Ball Guide Type (Tool Steel)

9 Strong holding force
Locating Pins / Bushings / Clamping Screws / Positioning Stages Various alterations, up to 10 micrometer knob positions
Low price

Locating Pins

P.745 Product Features
Bushings for Locating Pins 3D figure of manual positioning stage
2.5 times higher holding force due to improvement of clamp mechanism

P.749 Problems with generic products in the market *
Clamping The lock screw has a relatively low holding force (typically 40N)
after it is locked in place, which easily causes loosening.
Adjusting Bolts Improvements to Economy Series Manual Positioning Stages
mechanism

P.753 Improvement 1
Partial Section View The relief
1
Clamp Screws groove at the root of the lock
screw is removed so that the 2
washer is centered, achieving a
P.760 1 Lock screw uniform stress.
Improvement 2
Urethane Pushers Section view of 2 Washer Partial Section View The inner
2
clamping mechanism
P.763 Tabletop diameter of the washer is decreased
to reduce the fit clearance between
the washer and the lock screw so
1
Micrometer Heads that a uniform stress is achieved.
Improvement 3
P.767 Partial Section View The
2
Motorized Positioning Stages Base material of the washer is changed
from nylon to stainless steel to
increase the frictional resistance.

P.769 The test shows the improved Compared to generic products on
holding force has reached the market, it has increased by
100N 2.5times
*Generic products on the market are similar products randomly purchased by our company from online
or offline markets. The above data is limited to sample test results, which is for reference only.
769 *The amount of holding force varies with the tightening torque. For complete locking, please select the
opposed clamp mechanism.
