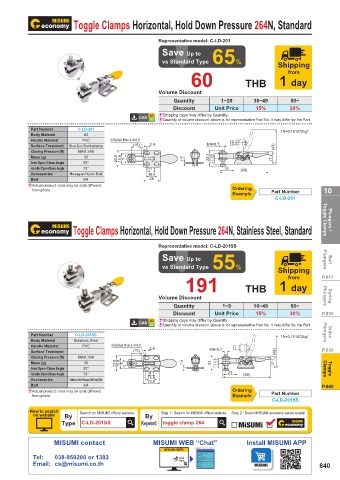

Toggle Clamps Horizontal, Hold Down Pressure 264N, Standard
Representative model: C-LD-201
Save Up to
vs Standard Type 65% Shipping
60 THB 1 day
from

Volume Discount
Quantity 1~29 30~49 50~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Part Number C-LD-201 1N=0.101972kgf
Body Material A3
Handle Material PVC 4-Slotted Hole 4.4×6.8
Surface Treatment Blue Zinc Electroplating (15) 2.4 M4×0.7 (47)
Closing Pressure (N) MAX 264
Mass (g) 30 23.8 15.9 5 1.5 22.5 7.7 6.8 17.1
Arm Open-Close Angle 90°
Handle Open-Close Angle 73° 11.1 21 (69)
Accessories Hexagon Nylon Bolt 15.9
Bolt M4 24
E Actual product color may be a bit different
from photo. Ordering Part Number 10
Example
C-LD-201

Toggle Clamps Horizontal, Hold Down Pressure 264N, Stainless Steel, Standard Toggle Clamps Plungers /

Representative model: C-LD-201SS

Save Up to Plungers Ball
vs Standard Type 55% Shipping
191 THB 1 day P.817
from

Volume Discount Plungers Spring
Quantity 1~9 10~49 50~
Discount Unit Price 15% 30% P.826
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Part Number C-LD-201SS 1N=0.101972kgf Plungers Index
Body Material Stainless Steel
Handle Material PVC 4-Slotted Hole 4.4×6.8 2.4
Surface Treatment - (15) M4×0.7 (48) P.830
Closing Pressure (N) MAX 264
Mass (g) 30 23.8 15.9 5 1.5 23 7.7 6.8 17.1
Arm Open-Close Angle 90° Clamps Toggle
Handle Open-Close Angle 73° 11.1 21 (69)
Accessories Stainless Steel Hexagon Flat Head Bolts 15.9
23.8
Bolt M4 P.840
E Actual product color may be a bit different Ordering
from photo. Example Part Number
C-LD-201SS
