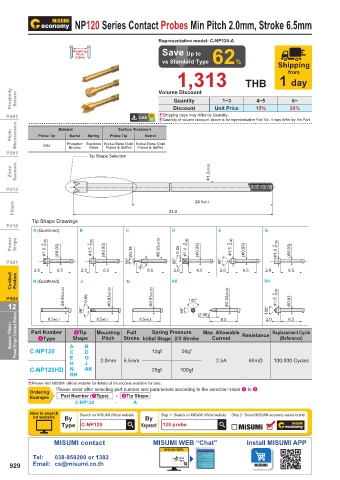

NP120 Series Contact Probes Min Pitch 2.0mm, Stroke 6.5mm
Representative model: C-NP120-A
Mounting
Pitch Save Up to
2.0mm
vs Standard Type 62% Shipping
1,313 THB 1 day
from

Proximity Sensor Volume Discount 1~3 4~5 6~
Quantity
Unit Price
Discount
P.891 E Shipping days may differ by Quantity. 15% 30%
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Surface Treatment
Photo Microsensors Probe Tip Material Spring Probe Tip Barrel
Barrel
Phosphor Stainless Nickel Base Gold Nickel Base Gold
P.901 SK4 Bronze Steel Plated & Buffed Plated & Buffed
Tip Shape Selection
Zone Sensors φ 1.2±0.02

P.913

Filters 33.0 24.5±0.1

Tip Shape Drawings
P.918
A (Quartered) B C D E G
Power Strips φ 1.5 0 -0.06 ( φ 0.93) φ 1.5 0 -0.06 ( φ 0.93) φ 0.93±0.03 0.05 φ 1.5 0 -0.06 ( φ 0.93) φ 1.5 0 -0.06 ( φ 0.93) φ 1.5 0 -0.06 ( φ 0.93)

P.921 50° φ 0.15 90° 90°
2.0 6.5 2.0 6.5 30° 8.5 2.0 6.5 2.0 6.5 2.0 6.5
Contact Probes H (Quartered) J N AK RH

P.924 φ 0.93±0.03 0.05 φ 0.93±0.03 φ 0.93±0.03 120° φ 0.93±0.03 φ 1.5 0 -0.06 φ 0.93
12 8.5±0.1 90° 8.5±0.1 8.5±0.1 60° (2.08) 8.5 2.0 6.5
100°

Sensors / Filters / Power Strips / Contact Probes Part Number A Shape B Mounting Stroke Initial Stage 2/3 Stroke Max. Allowable Resistance Replacement Cycle
Spring Pressure
Full
2Tip
Current
Pitch
(Reference)
1Type
C-NP120
C
E
G
H D 2.0mm 6.5mm 15gf 50gf 2.5A 60mΩ 100,000 Cycles
J
C-NP120HD N AK 25gf 100gf
RH
E Please visit MISUMI official website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Tip Shape
C-NP120 - A
