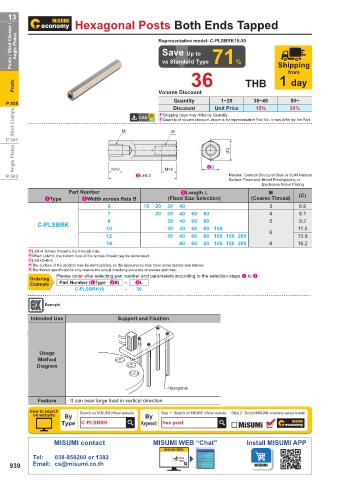

13 Hexagonal Posts Both Ends Tapped
Posts / Strut Clamps / Angle Plates Representative model: C-PLSBRK10-30 Shipping
Save Up to
71%
vs Standard Type
36
from
Posts Volume Discount THB 1 day

Quantity 1~29 30~49 50~
P.935 Discount Unit Price 15% 30%
Strut Clamps E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

P.941 M M
Angle Plates 2B (C)

P.943 M×2 3L±0.2 M×2 Material: General Structural Steel or SUM Material
Surface Treatment: Nickel Electroplating or
Electroless Nickel Plating
Part Number 3Length L M
1Type 2Width across flats B (Fixed Size Selection) (Coarse Thread) (C)
6 15 20 30 40 3 6.9
7 20 30 40 60 80 4 8.1
C-PLSBRK 8 30 40 60 80 5 9.2
10 30 40 60 80 100 11.5
12 30 40 60 80 100 150 200 6 13.9
14 40 60 80 100 150 200 8 16.2
EL≤M×4 female thread is the through hole.
EWhen L≤M×6, the bottom hole of the female thread may be penetrated.
EL≥M×2+N×2
E The surface of the product may be barrel plated, so the appearance may have some bumps and bruises.
E The thread specifications only ensure the actual matching accuracy of screws and nuts.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2B) - 3L
C-PLSBRK10 - 30
Example

Intended Use Support and Fixation

Usage
Method
Diagram

Hexagonal Posts
Feature · It can bear large load in vertical direction
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-PLSBRK Keyword hex post

MISUMI contact MISUMI WEB “Chat” Install MISUMI APP
MISUMI WEB
Tel: 038-959200 or 1382
939 Email: cs@misumi.co.th
