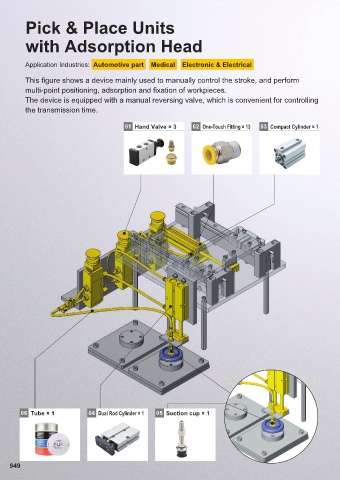

Pick & Place Units Reference price
with Adsorption Head

Application Industries: Automotive part Medical Electronic & Electrical

This figure shows a device mainly used to manually control the stroke, and perform
multi-point positioning, adsorption and fixation of workpieces.
The device is equipped with a manual reversing valve, which is convenient for controlling
the transmission time.

01 Hand Valve × 3 P.1013 02 One-Touch Fitting × 13 P.1089
01 Hand Valve × 3 02 One-Touch Fitting × 13 03 Compact Cylinder × 1
Specifications 200 Series Applicable tube O.D. 6mm
Piping Thread Nominal Diameter G1/8 Connecting thread nominal 1(R1/8)
Accessories - Silencer Not Provided PACK-MEPC6-1
E-MVP210-01

325 749

THB/pcs THB/pack
Quantity Unit price Total price Quantity Unit price Total price
1 325 325 1 749 749
4 276 1,104 4 637 2,548

03 Compact Cylinder × 1 P.957 04 Dual Rod Cylinder × 1 P.961

Cylinder Dia.: 20mm Cylinder Dia.: 20mm
Stroke: 100mm Stroke: 50mm
E-MSDNS20-100-NR-NS E-MTN20-50-NS

402 750

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 402 402 1 750 750
10 363 3,630 4 638 2,552

05 Suction Cup × 1 P.1053 06 Tube × 1 P.1157

Suction cup shape Flat Color Black
Rubber material Nitrile rubber O.D. 6mm
O.D. 6mm Length 200m
E-MZU6-N-M5 MET6-200-B

155 2,472
06 Tube × 1 04 Dual Rod Cylinder × 1 05 Suction cup × 1
THB/pcs THB/roll
Quantity Unit price Total price Quantity Unit price Total price
1 155 155 1 2,472 2,472
10 132 1,320 4 2,102 8,408

* All products prices are without tax. For prices reference, please visit MISUMI official website.
949 * The reference price is estimated based on the quantity or approximate length of the product used in the example, and is not
calculated as a starting price.
