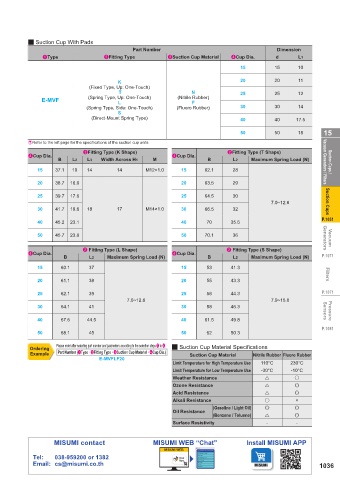

Q Suction Cup With Pads
Part Number Dimension
1Type 2Fitting Type 3Suction Cup Material 4Cup Dia. d L1
15 15 10

K 20 20 11
(Fixed Type, Up: One-Touch)
T N 25 25 12
E-MVF (Spring Type, Up: One-Touch) (Nitrile Rubber)
F
L
(Spring Type, Side: One-Touch) (Fluoro Rubber) 30 30 14
S
(Direct-Mount Spring Type) 40 40 17.5
50 50 18 15
E Refer to the left page for the specifications of the suction cup units
2Fitting Type (K Shape) 2Fitting Type (T Shape)
4Cup Dia. 4Cup Dia.
B L2 L3 Width Across H1 M B L2 Maximum Spring Load (N) Vacuum Generators / Filters Suction Cups /
15 37.1 10 14 14 M12×1.0 15 62.1 28
20 38.7 16.6 20 63.5 29

25 39.7 17.6 25 64.5 30
7.0~12.6 Suction Cups
30 41.7 19.6 18 17 M14×1.0 30 66.5 32
P.1031
40 45.2 23.1 40 70 35.5
50 45.7 23.6 50 70.1 36 Generators Vacuum

2 Fitting Type (L Shape) 2 Fitting Type (S Shape)
4Cup Dia. 4Cup Dia.
B L2 Maximum Spring Load (N) B L2 Maximum Spring Load (N) P.1071
15 60.1 37 15 53 41.3
Q Screw Filters
20 61.1 38 20 55 43.3
25 62.1 39 25 56 44.3 P.1071
7.0~12.6 7.9~15.0
30 64.1 41 30 58 46.3 Sensors Pressure
40 67.6 44.5 40 61.5 49.8
P.1081
50 68.1 45 50 62 50.3
Please order after selecting part number and parameters according to the selection steps 1 to 4. Q Suction Cup Material Specifications
Ordering
Example Part Number (1Type · 2Fitting Type · 3Suction Cup Material · 4Cup Dia.) Suction Cup Material Nitrile Rubber Fluoro Rubber
E-MVFLF20
Limit Temperature for High Temperature Use 110°C 230°C
Limit Temperature for Low Temperature Use -30°C -10°C
Weather Resistance △ G
Ozone Resistance △ P
Acid Resistance △ P
Alkali Resistance G ×
(Gasoline / Light Oil) P P
Oil Resistance
(Benzene / Toluene) △ P
Surface Resistivity - -
