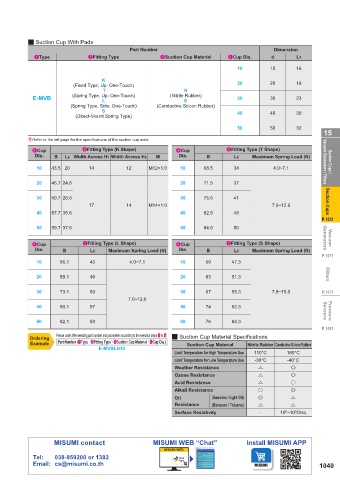

Q Suction Cup With Pads
Part Number Dimension
1Type 2Fitting Type 3Suction Cup Material 4Cup Dia. d L1
10 10 16

K
(Fixed Type, Up: One-Touch) 20 20 19
T N
E-MVB (Spring Type, Up: One-Touch) (Nitrile Rubber) 30 30 23
E
L
(Spring Type, Side: One-Touch) (Conductive Silicon Rubber)
S 40 40 30
(Direct-Mount Spring Type)
50 50 32
15
E Refer to the left page for the specifications of the suction cup units
4Cup 2Fitting Type (K Shape) 4Cup 2Fitting Type (T Shape)
Dia. B L2 Width Across H1 Width Across H2 M Dia. B L2 Maximum Spring Load (N)
10 43.5 20 14 12 M12×1.0 10 68.5 34 4.0~7.1 Vacuum Generators / Filters Suction Cups /

20 46.7 24.6 20 71.5 37

30 50.7 28.6 30 75.5 41
17 14 M14×1.0 7.0~12.6 Suction Cups
40 57.7 35.6 40 82.5 48
P.1031
50 59.7 37.6 50 84.5 50

4Cup 2Fitting Type (L Shape) 4Cup 2Fitting Type (S Shape) Generators Vacuum
Dia. B L2 Maximum Spring Load (N) Dia. B L2 Maximum Spring Load (N)
P.1071
10 66.1 43 4.0~7.1 10 59 47.3

20 69.1 46 20 63 51.3 Filters

30 73.1 50 30 67 55.3 7.9~15.0 P.1071
7.0~12.6
40 80.1 57 40 74 62.3 Sensors Pressure

50 82.1 59 50 76 64.3
P.1081
Please order after selecting part number and parameters according to the selection steps 1 to 4. Q Suction Cup Material Specifications
Ordering
Example Part Number (1Type · 2Fitting Type · 3Suction Cup Material · 4Cup Dia.) Suction Cup Material Nitrile Rubber Conductive Silicon Rubber
E-MVBLN10
Limit Temperature for High Temperature Use 110°C 180°C
Limit Temperature for Low Temperature Use -30°C -40°C
Weather Resistance △ P
Ozone Resistance △ P
Acid Resistance △ G
Alkali Resistance G P
Oil (Gasoline / Light Oil) P △
Resistance (Benzene / Toluene) △ △
Surface Resistivity - 10 ~10 Ω/sq
6
9
