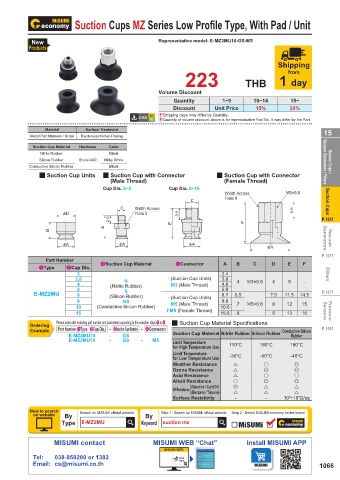

Suction Cups MZ Series Low Profile Type, With Pad / Unit
New Representative model: E-MZ2MU10-GS-M5
Products
Shipping
223 THB 1 day
from

Volume Discount
Quantity 1~9 10~14 15~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment 15
Metal Part Material / Brass Electroless Nickel Plating
Suction Cup Material Hardness Color
Nitrile Rubber Black
Silicon Rubber Shore A60 Milky White
Conductive Silicon Rubber Black Vacuum Generators / Filters Suction Cups /
Q Suction Cup Units Q Suction Cup with Connector Q Suction Cup with Connector
(Male Thread) (Female Thread)
Cup Dia. 2~5 Cup Dia. 6~15
Width Across M5×0.8
Flats 8
C Suction Cups
C Width Across 5.5
φD Flats 5 3.5
2.5 P.1031
E F
E
B
φA φA φA Generators Vacuum
φA
P.1071
Part Number
1Type 2Cup Dia. 3Suction Cup Material 4Connector A B C D E F
2 2.4 Filters
3.5 N - (Suction Cup Units) 3.8 4 M3×0.5 4 9 -
4 (Nitrile Rubber) M3 (Male Thread) 4.8
5 5.8
S
E-MZ2MU 6 (Silicon Rubber) 6.7 6.5 7.5 11.5 14.5 P.1071
8 GS - (Suction Cup Units) 8.8
10 (Conductive Silicon Rubber) M5 (Male Thread) 10.6 7 M5×0.8 8 12 15
15 FM5 (Female Thread) 15.6 8 9 13 16 Sensors Pressure
Please order after selecting part number and parameters according to the selection steps 1 to 4. Q Suction Cup Material Specifications
Ordering
Example Part Number (1Type · 2Cup Dia.) - 3Suction Cup Material - 4Connector Conductive Silicon P.1081
E-MZ2MU10 - GS Suction Cup Material Nitrile Rubber Silicon Rubber Rubber
E-MZ2MU10 - GS - M5 Limit Temperature
for High Temperature Use 110°C 180°C 180°C
Limit Temperature
for Low Temperature Use -30°C -50°C -40°C
Weather Resistance △ G P
Ozone Resistance △ P P
Acid Resistance △ G G
Alkali Resistance G P P
(Gasoline / Light Oil) P △ △
Oil Resistance
(Benzene / Toluene) △ △ △
Surface Resistivity - - 10 ~10 Ω/sq
6
9
