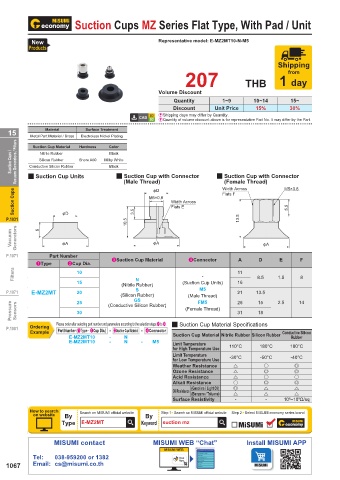

Suction Cups MZ Series Flat Type, With Pad / Unit
New Representative model: E-MZ2MT10-N-M5
Products
Shipping
207 THB 1 day
from

Volume Discount
Quantity 1~9 10~14 15~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
Surface Treatment
15 Metal Part Material / Brass Hardness Color
Electroless Nickel Plating
Suction Cup Material
Suction Cups / Vacuum Generators / Filters Q Suction Cup Units Milky White (Male Thread) Q Suction Cup with Connector
Black
Nitrile Rubber
Silicon Rubber
Shore A60
Black
Conductive Silicon Rubber
Q Suction Cup with Connector
(Female Thread)
φD
Suction Cups M5×0.8 Width Across Width Across M5×0.8
Flats F
Flats E
5.5
P.1031 φD 10.5 3.5 13.5
Vacuum Generators 5 φA φA φA

P.1071 Part Number 3Suction Cup Material 4Connector A D E F
1Type 2Cup Dia.
Filters 10 N (Suction Cup Units) 11 8.5 1.5 8
-
16
15
(Nitrile Rubber)
M5
S
P.1071 E-MZ2MT 20 (Silicon Rubber) (Male Thread) 21 13.5
GS
FM5
Pressure Sensors 25 (Conductive Silicon Rubber) (Female Thread) 26 15 2.5 14
30
31
18
P.1081 Ordering Please order after selecting part number and parameters according to the selection steps 1 to 4. Q Suction Cup Material Specifications
Part Number (1Type · 2Cup Dia.) - 3Suction Cup Material - 4Connector
Example Conductive Silicon
E-MZ2MT10 - N Suction Cup Material Nitrile Rubber Silicon Rubber Rubber
E-MZ2MT10 - N - M5 Limit Temperature
for High Temperature Use 110°C 180°C 180°C
Limit Temperature
for Low Temperature Use -30°C -50°C -40°C
Weather Resistance △ G P
Ozone Resistance △ P P
Acid Resistance △ G G
Alkali Resistance G P P
(Gasoline / Light Oil) P △ △
Oil Resistance
(Benzene / Toluene) △ △ △
6
9
Surface Resistivity - - 10 ~10 Ω/sq
