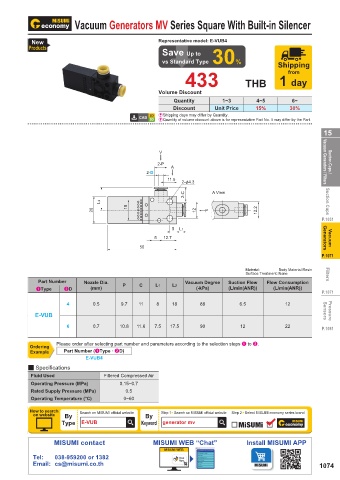

Vacuum Generators MV Series Square With Built-in Silencer
New Representative model: E-VUB4
Products
Save Up to
vs Standard Type 30% Shipping
433 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
15

V

2-P Vacuum Generators / Filters Suction Cups /
A
2-D
11.5
2-φ4.3
2-C A View
L2 Suction Cups
15
20 12 P 12.2
P.1031
5 L1
5 12.7 Generators Vacuum
50
P.1071

Material: Metal Part Material / Brass Material: Body Material Resin
Surface Treatment: Electroless Nickel Plating Surface Treatment: None Filters
Part Number Nozzle Dia. P C Vacuum Degree Suction Flow Flow Consumption
1Type 2D (mm) L1 L2 (-kPa) (L/min(ANR)) (L/min(ANR))
P.1071
4 0.5 9.7 11 8 18 88 6.5 12
E-VUB Sensors Pressure
6 0.7 10.8 11.6 7.5 17.5 90 12 22 P.1081

Please order after selecting part number and parameters according to the selection steps 1 to 3. Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type · 2D)
E-VUB4
Q Specifications
Fluid Used Filtered Compressed Air
Operating Pressure (MPa) 0.15~0.7
Rated Supply Pressure (MPa) 0.5
Operating Temperature (°C) 0~60
