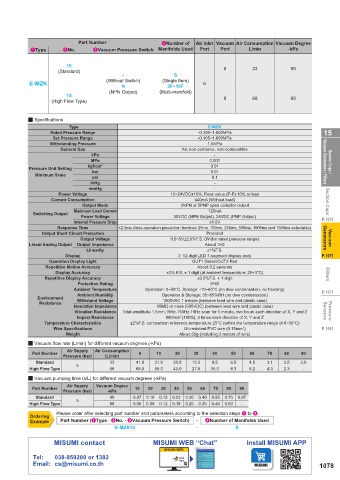

Part Number 4Number of Air Inlet Vacuum Air Consumption Vacuum Degree
1Type 2No. 3Vacuum Pressure Switch Manifolds Used Port Port L/min -kPa

10
(Standard) 6 33 90
- S
E-MZK (Without Switch) (Single Item) 6
N
2F~10F
(NPN Output) (Multi-manifold)
15
(High Flow Type) 8 68 88
Q Specifications
Type E-MZK
Rated Pressure Range -0.100~1.000MPa 15
Set Pressure Range -0.105~1.000MPa
Withstanding Pressure 1.5MPa
General Gas Air, non-corrosive, non-combustible
kPa -
MPa 0.001 Vacuum Generators / Filters Suction Cups /
kgf/cm 2 0.01
Pressure Unit Setting bar 0.01
Minimum Scale
psi 0.1
inHg -
mmHg -
Power Voltage 12~24VDC±10%, Peak value (P-P) 10% or less
Current Consumption ≤40mA (Without load) Suction Cups
Output Mode 2NPN or 2PNP open collector output
Maximum Load Current 125mA
Switching Output
Power Voltage 30VDC (NPN Output), 24VDC (PNP Output) P.1031
Internal Pressure Drop ≤1.5V
Response Time ≤2.5ms (false-operation prevention function: 25ms, 100ms, 250ms, 500ms, 1000ms and 1500ms selectable)
Output Short Circuit Protection Provided
Output Voltage 0.6~5V±2.5%F.S. (Within rated pressure range) Generators Vacuum
Linear Analog Output Output Impedance About 1kΩ
Linearity ±1%F.S.
Display 3 1/2-digit LED 7-segment display (red) P.1071
Operation Display Light OUT1 Green/OUT2 Red
Repetitive Motion Accuracy About 0.2 seconds
Display Accuracy ±2% F.S. ± 1 digit (at ambient temperature: 25+3°C) Filters
Repetitive Display Accuracy ±0.2%F.S. + 1 digit
Protection Rating IP40
Ambient Temperature Operation: 0~50°C, Storage: -10~60°C (no dew condensation, no freezing) P.1071
Ambient Humidity Operation & Storage: 35~85%RH (no dew condensation)
Environment Withstand Voltage 1000VAC 1 minute (between lead wire and plastic case)
Resistance
Insulation Impedance 50MΩ or more (500VDC) (between lead wire and plastic case)
Vibration Resistance Total amplitude 1.5mm,10Hz-150Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z Sensors Pressure
Impact Resistance 980m/s (100G), 3 times each direction of X, Y and Z
2
Temperature Characteristics ±2%F.S. comparison reference temperature 25°C (within the temperature range of 0~50°C)
2
Wire Specifications Oil-resistant PVC wire (0.15mm ) P.1081
Weight About 55g (Including 2 meters of wire)
Q Vacuum flow rate (L/min) for different vacuum degrees (-kPa)
Air Supply Air Consumption
Part Number 0 10 20 30 40 50 60 70 80 90
Pressure (bar) (L/min)
Standard 33 41.0 31.0 20.5 13.3 9.5 6.5 4.5 3.1 2.5 2.0
High Flow Type 5 68 68.0 55.0 43.0 27.0 15.0 8.3 5.2 4.3 2.3 -
Q Vacuum pumping time (s/L) for different vacuum degrees (-kPa)
Part Number Air Supply Vacuum Degree 10 20 30 40 50 60 70 80 90
Pressure (bar) -kPa
Standard 90 0.07 0.10 0.15 0.22 0.30 0.40 0.55 0.70 0.87
High Flow Type 5 88 0.06 0.09 0.12 0.18 0.25 0.35 0.46 0.60 -
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Material: Resin Example Part Number (1Type · 2No. · 3Vacuum Pressure Switch) - 4Number of Manifolds Used
Surface Treatment: None E-MZK10 - S
