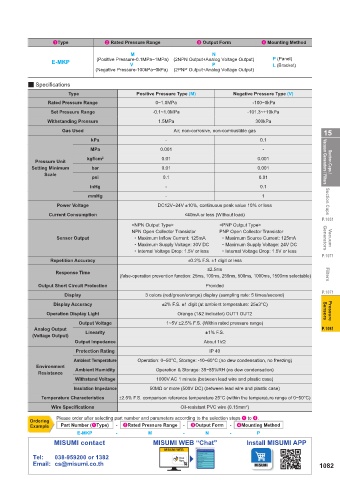

Page 1087 - MISUMI Thailand Economy Series

Format Series Price Ratio Shipping Search Drawing Product Material Table Techinfo Others BD M D GM Format Series Price Ratio Shipping Search Drawing Product Material Table Techinfo Others BD M D GM
Title
Pict
Title
Pict
KW
KW
Name
Name
Date
Date
AK AK
M M
1Type 2 Rated Pressure Range 3 Output Form 4 Mounting Method

M N
E-MKP (Positive Pressure-0.1MPa~1MPa) (2NPN Output+Analog Voltage Output) P (Panel)
P
V
L (Bracket)
(Negative Pressure-100kPa~0kPa) (2PNP Output+Analog Voltage Output)
Q Specifications
Type Positive Pressure Type (M) Negative Pressure Type (V)
Rated Pressure Range 0~1.0MPa -100~0kPa
Set Pressure Range -0.1~1.0MPa -101.3~+10kPa
Withstanding Pressure 1.5MPa 300kPa
Gas Used Air, non-corrosive, non-combustible gas 15
kPa - 0.1
MPa 0.001 -
kgf/cm 2 0.01 0.001
Pressure Unit Vacuum Generators / Filters Suction Cups /
Setting Minimum bar 0.01 0.001
Scale
psi 0.1 0.01
inHg - 0.1
mmHg - 1
Power Voltage DC12V~24V ±10%, continuous peak value 10% or less Suction Cups
Current Consumption ≤40mA or less (Without load)
P.1031
<NPN Output Type> <PNP Output Type>
NPN Open Collector Transistor PNP Open Collector Transistor
Sensor Output ・Maximum Inflow Current: 125mA ・Maximum Source Current: 125mA Generators Vacuum
・Maximum Supply Voltage: 30V DC ・Maximum Supply Voltage: 24V DC
・Internal Voltage Drop: 1.5V or less ・Internal Voltage Drop: 1.5V or less
P.1071
Repetition Accuracy ±0.2% F.S. ±1 digit or less
≤2.5ms
Response Time
(false-operation prevention function: 25ms, 100ms, 250ms, 500ms, 1000ms, 1500ms selectable) Filters
Output Short Circuit Protection Provided
P.1071
Display 3 colors (red/green/orange) display (sampling rate: 5 times/second)
Display Accuracy ±2% F.S. ±1 digit (at ambient temperature: 25±3°C)
Operation Display Light Orange (1&2 indicator) OUT1 OUT2 Sensors Pressure
Output Voltage 1~5V ±2.5% F.S. (Within rated pressure range)
Analog Output P.1081
(Voltage Output) Linearity ±1% F.S.
Output Impedance About 1kΩ
Protection Rating IP 40
Ambient Temperature Operation: 0~50°C, Storage: -10~60°C (no dew condensation, no freezing)
Environment Ambient Humidity Operation & Storage: 35~85%RH (no dew condensation)
Resistance
Withstand Voltage 1000V AC 1 minute (between lead wire and plastic case)
Insulation Impedance 50MΩ or more (500V DC) (between lead wire and plastic case)
Temperature Characteristics ±2.5% F.S. comparison reference temperature 25°C (within the temperature range of 0~50°C)
Wire Specifications Oil-resistant PVC wire (0.15mm )
2
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type) - 2Rated Pressure Range - 3Output Form - 4Mounting Method
E-MKP - M - N - P
