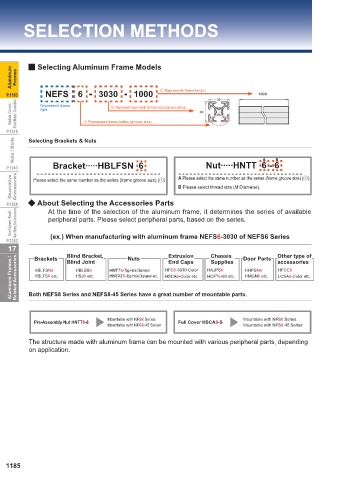

SELECTION METHODS

Aluminum Frames ■ Selecting Aluminum Frame Models

P.1183 NEFS 6 - 3030 - 1000 ③ Represents frame length.
Brackets / Corners / Sheet Metals / Connectors Represents frame ① Represents frame series (groove size).
② Represents frame width for both horizontal and vertical.
type.

P.1215 Selecting Brackets & Nuts
Nuts / Bolts A B

P.1243 Bracket∙∙∙∙∙HBLFSN 6 Nut∙∙∙∙∙HNTT 6 - 6
Decorative Accessories Please select the same number as the series (frame groove size) (①). A Please select the same number as the series (frame groove size) (①).
B Please select thread size (M Diameter).

P.1258 ◆ About Selecting the Accessories Parts
At the time of the selection of the aluminum frame, it determines the series of available
Panel Fasteners / Panels / Door Sliding Slot Accessories peripheral parts. Please select peripheral parts, based on the series.

P.1262 (ex.) When manufacturing with aluminum frame NEFS6-3030 of NEFS6 Series
17 Brackets Blind Bracket, Nuts Extrusion Chassis Door Parts Other type of
Aluminum Frames / Related Accessories Both NEFS8 Series and NEFS8-45 Series have a great number of mountable parts. HHPSN6 HFCC6
accessories
Supplies
End Caps
Blind Joint
HBLBS6
HFC6-3030-Color
HAJPS6
HBLFSN6
HNTT6-Tap Hole Diameter
HBLTS6 etc.
HMGN6 etc.
HNTAT6-Tap Hole Diameter etc.
HSJ6 etc.
HSCA6-Color etc.
LCSA6-Color etc.
HCFT6-60 etc.
Mountable with NFS8 Series Mountable with NFS8 Series
Pre-Assembly Nut HNTT8-8 Full Cover HSCA8-S
Mountable with NFS8-45 Series Mountable with NFS8-45 Series
The structure made with aluminum frame can be mounted with various peripheral parts, depending
on application.

1185
