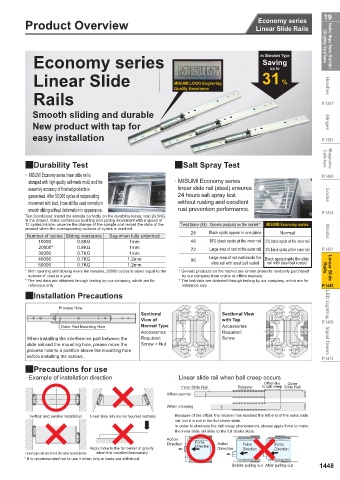

Economy series
Product Overview Linear Slide Rails 19
Economy series vs Standard Type LED Lighting / Signal Towers Handles / Hinges / Knobs / Slide Rails /
Saving
up to
Linear Slide MISUMI LOGO Engraving 31 % Handles

Rails Quality Assurance P.1367

Smooth sliding and durable
New product with tap for Hinges
easy installation P.1383

QDurability Test QSalt Spray Test Catches Magnetic

· MISUMI Economy series linear slide rail is P.1405
stamped with high-quality self-made mold, and the · MISUMI Economy series
assembly accuracy of finished products is linear slide rail (steel) ensures
guaranteed. After 50,000 cycles of reciprocating 24 hours salt spray test Locks
movement with load, it can still be used normally in without rusting and excellent
smooth sliding without deformation in appearance. rust prevention performance. P.1414
Test Conditions: Install the sample correctly on the durability tester, load 24.5KG
in the drawer, make continuous pushing and pulling movement with a speed of
12 cycles/minute, observe the change of the sample and record the state of the Test time (H) Generic products on the market * MISUMI Economy series
product when the corresponding number of cycles is reached. Knobs
Number of cycles Sliding resistance Sag when fully extended 24 Black spots appear in one place Normal
10000 0.8KG 1mm 48 10% black spots at the inner rail 2% black spots at the inner rail
20000* 0.8KG 1mm 72 Large area of rust at the outer rail 3% black spots at the outer rail P.1431
30000 0.7KG 1mm
40000 0.7KG 1.2mm 96 Large area of red rust inside the Black spots inside the slide
50000 0.7KG 1.2mm slide rail with steel ball rusted rail with steel ball rusted
* With opening and closing every ten minutes, 20000 cycles is about equal to the * Generic products on the market are similar products randomly purchased Rails Linear Slide
number of uses in a year. by our company from online or offline markets
* The test data are obtained through testing by our company, which are for * The test data are obtained through testing by our company, which are for
reference only reference only P.1448
QInstallation Precautions

Process Hole LED Lighting
Sectional Sectional View
View of with Tap P.1466
Outer Rail Mounting Hole Normal Type Accessories
Accessories Required:
When installing the interference part between the Required: Screw Signal Towers
slide rail and the mounting hole, please move the Screw + Nut
process hole to a position above the mounting hole
before installing the screws. P.1475
QPrecautions for use
· Example of installation direction · Linear slide rail when ball creep occurs
Offset due Outer
Inner Slide Rail Retainer to ball creep Slide Rail
When normal

When creeping
Vertical and parallel installation Linear slide rails are not mounted vertically Because of the offset, the retainer has reached the left end of the outer slide
rail, but it is not in the full stroke state.
In order to eliminate the ball creep phenomenon, please apply force to make
the inner slide rail slide to the full stroke state.
Action
Direction 〃 Force Action Force Force
Apply force to the far center of gravity Direction Direction Direction Direction
Linear type rails are not on the same horizontal line when it is installed horizontally
* It is recommended not to use it when torque loads are withstood 〃
Before pulling out After pulling out 1448
