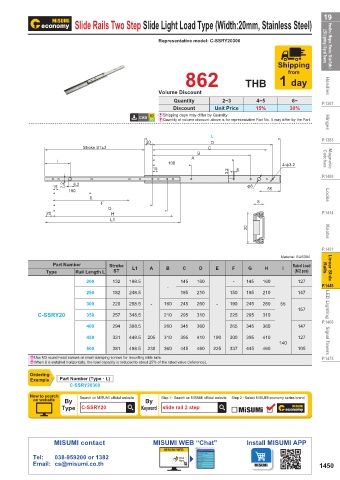

Slide Rails Two Step Slide Light Load Type (Width:20mm, Stainless Steel)
Representative model: C-SSRY20300 LED Lighting / Signal Towers Handles / Hinges / Knobs / Slide Rails /
Shipping
862 THB 1 day
from

Volume Discount Handles
Quantity 2~3 4~5 6~ P.1367
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. Hinges

L
20 D P.1383
Stroke ST±3 C
B
A Catches
I 100 4-φ3.2 Magnetic
15 4
3.2
P.1405
15 7.2 8.2 φ8 55
100
E Locks
F 8
G
20 H P.1414
L1
20 Knobs

P.1431
Material: Steel(Q235)
Surface Treatment: Zinc Plating Material: SUS304
Part Number Stroke Rated Load
Type Rail Length L ST L1 A B C D E F G H I (N/2 pcs) Rails Linear Slide
200 132 198.5 145 160 - 145 160 127
- P.1448
250 182 248.5 195 210 150 195 210 147
300 220 298.5 - 160 245 260 - 190 245 260 55 LED Lighting
157
C-SSRY20 350 257 348.5 210 295 310 225 295 310
P.1466
400 294 398.5 260 345 360 265 345 360 147
450 331 448.5 205 310 395 410 190 300 395 410 127
140 Signal Towers
500 381 498.5 230 360 445 460 225 337 445 460 105
E Use M3 round head screws or small clamping screws for mounting slide rails. P.1475
E When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).

Ordering
Example Part Number (Type · L)
C-SSRY20300
