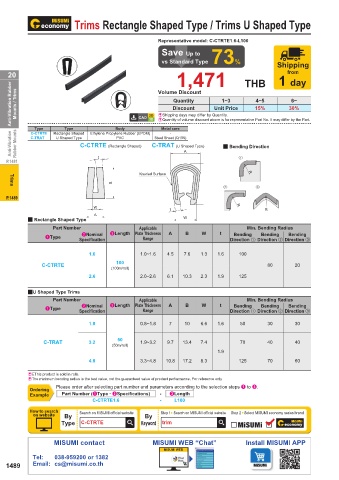

Page 1494 - MISUMI Thailand Economy Series

Trims Rectangle Shaped Type / Trims U Shaped Type

Representative model: C-CTRTE1.6-L100
Save Up to
vs Standard Type 73% Shipping
from
20 1,471 THB 1 day
Anti-Vibration Rubber Mounts / Trims Volume Discount Unit Price 15% 30%

Quantity
1~3
4~5
6~
Discount
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Type
Body
Metal core
Type
Anti-Vibration Rubber Mounts C-CTRTE Rectangle Shaped Ethylene Propylene Rubber (EPDM) C-TRAT (U Shaped Type) Q Bending Direction
-
Steel Sheet (Q195)
U Shaped Type
PVC
C-TRAT
C-CTRTE (Rectangle Shaped)
A
P.1481 t 1
Knurled Surface R
B
B
2 3
Trims
P.1489
W t R R
A
Q Rectangle Shaped Type W
Part Number Applicable Min. Bending Radius
2Nominal 3Length Plate Thickness A B W t Bending Bending Bending
1Type Range
Specification Direction 1 Direction 2 Direction 3
1.6 1.0~1.6 4.5 7.6 1.3 1.6 100
C-CTRTE 100 80 20
(100m/roll)
2.6 2.0~2.6 6.1 10.3 2.3 1.9 125
QU Shaped Type Trims
Part Number Applicable Min. Bending Radius
2Nominal
Bending
Bending
Bending
1Type Specification 3Length Plate Thickness A B W t Direction 1 Direction 2 Direction 3
Range
1.8 0.8~1.8 7 10 6.6 1.6 50 30 30
C-TRAT 3.2 50 1.9~3.2 9.7 13.4 7.4 70 40 40
(50m/roll)
1.9
4.8 3.3~4.8 10.8 17.2 8.3 125 70 60
EEThis product is sold in rolls.
EThe minimum bending radius is the test value, not the guaranteed value of product performance. For reference only
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Specifications) - 3Length
C-CTRTE1.6 - L100
