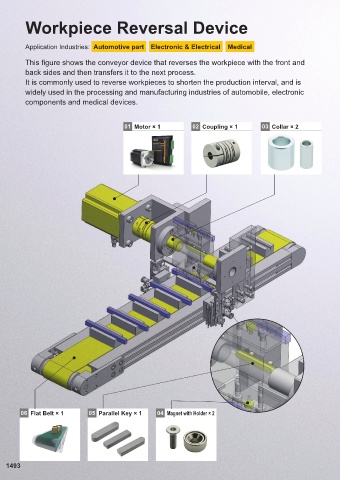

Workpiece Reversal Device Reference price
Application Industries: Automotive part Electronic & Electrical Medical

This figure shows the conveyor device that reverses the workpiece with the front and
back sides and then transfers it to the next process.
It is commonly used to reverse workpieces to shorten the production interval, and is
widely used in the processing and manufacturing industries of automobile, electronic
components and medical devices.

01 Motor × 1 P.494 02 Coupling × 1 P.519
01 Motor × 1 02 Coupling × 1 03 Collar × 2
Type Motor + Driver 20 Series Slit Shaped
Body Length 33mm O.D. (φ) 20mm
Number of Leads 4 Shaft Hole Dia. 1(φ) 5mm
Holding Torque 0.018N·m Shaft Hole Dia. 2(φ) 8mm
C-20STM01+DR42A E-LMPLCN20-5-8
2,086 230

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 2,086 2,086 1 230 230
4 1,773 7,092 4 184 736

03 Collar × 2 P.1501 04 Magnet with Holder × 2 P.1516

I.D. 12mm Round shape Type
O.D. 15mm O.D. 8mm
Thickness / Length 15mm C-HXCC8
C-KNCLA12-15-15

54 211

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 54 54 2 211 422
30 46 1,380 10 179 1,790

05 Parallel Key × 1 P.1505 06 Flat Belt × 1 P.707

Round at Both Ends Shape Surface Material Urethane
Width 4mm Belt Width W 50mm
Total Length 25mm Circumference Length 1.6m
C-KES4-25 Surface Cover Green Glossy Surface
CFBUG-50-1.6
16 1,685
06 Flat Belt × 1 05 Parallel Key × 1 04 Magnet with Holder × 2
THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 16 16 2 1,685 3,370
70 14 980 6 1,158 6,948

* All products prices are without tax. For prices reference, please visit MISUMI official website.
