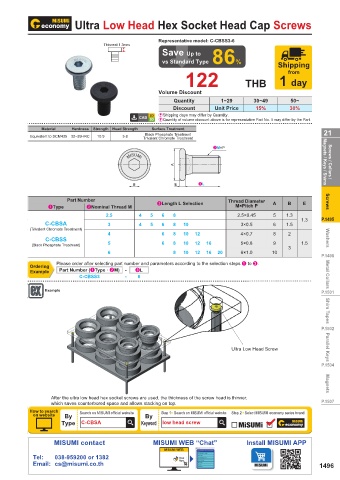

Ultra Low Head Hex Socket Head Cap Screws
Representative model: C-CBSS3-6
Thinnest 1.3mm
Save Up to
vs Standard Type 86% Shipping
122 THB 1 day
from

Volume Discount
Quantity 1~29 30~49 50~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Hardness Strength Head Strength Surface Treatment 21
Black Phosphate Treatment
Equivalent to SCM435 32~39HRC 10.9 5.8 Trivalent Chromate Treatment
2M×P
MISUMI
A Magnets / Keys / Shims Screws / Collars /

B E 3L
Part Number 3Length L Selection Thread Diameter A B E Screws
1Type 2Nominal Thread M M×Pitch P
2.5 4 5 6 8 2.5×0.45 5 1.3
C-CBSA 3 4 5 6 8 10 3×0.5 6 1.5 1.3 P.1495
(Trivalent Chromate Treatment)
4 6 8 10 12 4×0.7 8 2
C-CBSS Washers
(Black Phosphate Treatment) 5 6 8 10 12 16 5×0.8 9 1.5
3
6 8 10 12 16 20 6×1.0 10
P.1498
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2M) - 3L
C-CBSS3 - 6 Metal Collars
Example P.1501

Shim Tapes
P.1502

Ultra Low Head Screw Parallel Keys

P.1504

After the ultra low head hex socket screws are used, the thickness of the screw head is thinner, Magnets
which saves counterbored space and allows stacking on top. P.1507
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-CBSA Keyword low head screw

MISUMI contact MISUMI WEB “Chat” Install MISUMI APP
MISUMI WEB
Tel: 038-959200 or 1382
Email: cs@misumi.co.th 1496
