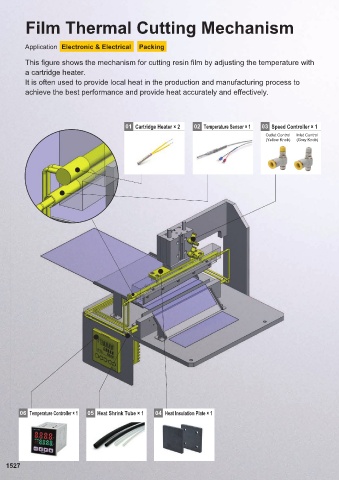

Film Thermal Cutting Mechanism Reference price

Application Industries:Electronic & Electrical Packing

This figure shows the mechanism for cutting resin film by adjusting the temperature with
a cartridge heater.
It is often used to provide local heat in the production and manufacturing process to
achieve the best performance and provide heat accurately and effectively.

01 Cartridge Heater × 2 P.1532 02 Temperature Sensor × 1 P.1539
01 Cartridge Heater × 2 02 Temperature Sensor × 1 03 Speed Controller × 1
Outlet Control Inlet Control Protection Sleeve·Protection
(Yellow Knob) (Gray Knob) Diameter 6mm
Length 40mm Tube Diameter d(φ) 3mm
Rated Capacity 80W Protection Tube Length 30mm
E-MCHK6-40-V220-W80 C-MSND3-30

438 625

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 438 438 1 625 625
4 373 1,492 4 531 2,124

03 Speed Controllers × 1 P.1150 04 Heat Insulation Plate × 1 P.1557

Outlet Control Inlet Control Control Direction Outlet Control Temperature Insulating Normal Insulating Grade
(Yellow Knob) (Gray Knob) Tube Nominal Diameter 6mm (Temperature Resistance Within 220 °C)
Thread Nominal 1(R1/8) Length 70mm
PACK-MESLA6-1 Width 20mm
Thickness 5mm
E-HIPLA-70-20-5
1,269 274

THB/pack THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 1,269 1,269 1 274 274
4 1,079 4,316 4 219 876

05 Heat Shrink Tube × 1 P.469 06 Temperature Controller × 1 P.1553

Flame retardance Provided Relay/Voltage Output Free Switching
I.D. (Before shrinkage) 1.5mm C-MTCTRS
I.D. (After shrinkage) ≤0.65mm
Packing specification 100m/roll
MTUBE-B-1
225 1,376
06 Temperature Controller × 1 05 Heat Shrink Tube × 1 04 Heat Insulation Plate × 1
THB/roll THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 225 225 1 1,376 1,376
10 192 1,920 4 1,170 4,680
