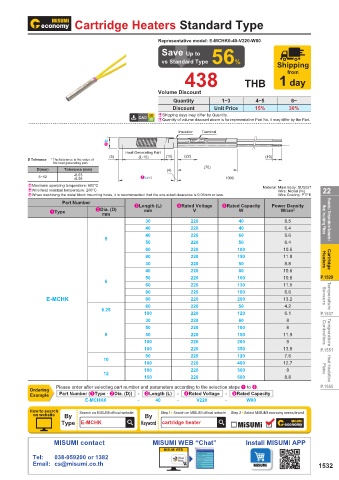

Page 1537 - MISUMI Thailand Economy Series

Cartridge Heaters Standard Type

1D Representative model: E-MCHK6-40-V220-W80
(5) Heat Generating Part (L-10) (5) (30) (5)
Save Up to
56%
0
2L±2 vs Standard Type +20 Shipping
250
438 THB 1 day
from
1D
Volume Discount
(15)
(5) Heat Generating Part (L-20) Quantity 1~3 4~5 6~
+20
2L±3 Discount 250Unit Price 15% 30%
0
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Insulator Terminal
2D
Heat Generating Part
(5) (L-15) (10) (22) (10)
D Tolerance * The tolerance is the value of
the heat generating part.
D(mm) Tolerance (mm) (4) (70)
5~12 -0.03 3L±1.5 1000
-0.06
EMaximum operating temperature: 600°C Material: Main Body: SUS321
EWire heat resistant temperature: 260°C Wire: Nickel (Ni) 22
EWhen machining the metal block mounting holes, it is recommended that the one-sided clearance is 0.05mm or less. Wire Coating: PTFE
Part Number 3Length (L) 4Rated Voltage 5Rated Capacity Power Density
1Type 2Dia. (D) mm V W W/cm 2
mm
30 220 40 8.5 Heat Insulating Plates Heaters / Temperature Sensors /
40 220 40 6.4
40 220 60 9.6
5
50 220 50 6.4
60 220 100 10.6
80 220 150 11.9
30 220 50 8.8 Heaters Cartridge
40 220 80 10.6
50 220 100 10.6 P.1529
6
60 220 130 11.5
80 220 100 6.6
E-MCHK 80 220 200 13.2 Sensors Temperature
60 220 50 4.2
6.25
100 220 120 6.1 P.1537
30 220 60 8
50 220 100 8
8 50 220 150 11.9 Controllers Temperature
100 220 200 8
100 220 350 13.9 P.1551
50 220 120 7.6
10
100 220 400 12.7
100 220 300 8 Plates Heat Insulation
12
150 220 500 8.8
Please order after selecting part number and parameters according to the selection steps 1 to 5. P.1555
Ordering
Example Part Number (1Type · 2Dia. (D)) - 3Length (L) - 4Rated Voltage - 5Rated Capacity
E-MCHK6 - 40 - V220 - W80
