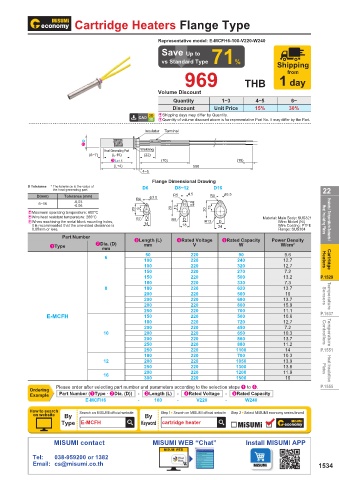

Page 1539 - MISUMI Thailand Economy Series

Cartridge Heaters Flange Type

Representative model: E-MCFH6-100-V220-W240
Save Up to
vs Standard Type 71% Shipping
969 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Insulator Terminal
2D
Heat Generating Part Welding
(6~7) (L-15) (22)
3L±1.5 (70) (10)
(L+4) 500
4~5
Flange Dimensional Drawing
D Tolerance * The tolerance is the value of D6 D8~12 D16
the heat generating part. 22
D(mm) Tolerance (mm) R4 φ3.5 R5 4.5 R5 φ5.5
6~16 -0.03 8.5
-0.06
EMaximum operating temperature: 600°C 20 9 29 13 30 13
EWire heat resistant temperature: 260°C R7 D Material: Main Body: SUS321
E When machining the metal block mounting holes, 14 R9 D R12 D Wire: Nickel (Ni) Heat Insulating Plates Heaters / Temperature Sensors /
it is recommended that the one-sided clearance is 18 24 Wire Coating: PTFE
0.05mm or less. Flange: SUS304
Part Number 3Length (L) 4Rated Voltage 5Rated Capacity Power Density
1Type 2Dia. (D) mm V W W/cm 2
mm
50 220 90 9.6
6
100 220 240 12.7 Heaters Cartridge
100 220 320 12.7
150 220 270 7.2
150 220 500 13.2 P.1529
180 220 330 7.3
8 180 220 620 13.7
200 220 500 10 Sensors
200 220 690 13.7 Temperature
200 220 800 15.9
250 220 700 11.1
E-MCFH 150 220 500 10.6 P.1537
180 220 720 12.7
200 220 450 7.2
10 200 220 650 10.3 Controllers Temperature
200 220 860 13.7
250 220 880 11.2
250 220 1100 14 P.1551
180 220 700 10.3
12 200 220 1050 13.9
250 220 1300 13.8
200 220 1200 11.9 Plates Heat Insulation
16 300 220 1500 10
Please order after selecting part number and parameters according to the selection steps 1 to 5. P.1555
Ordering
Example Part Number (1Type · 2Dia. (D)) - 3Length (L) - 4Rated Voltage - 5Rated Capacity
E-MCFH6 - 100 - V220 - W240
