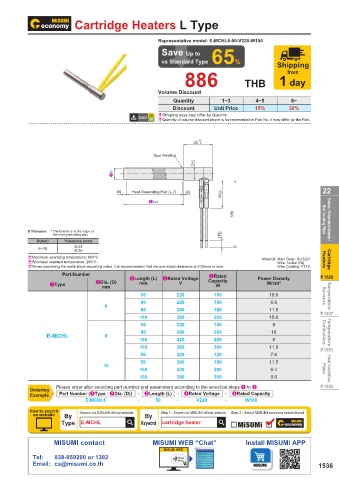

Page 1541 - MISUMI Thailand Economy Series

Cartridge Heaters L Type

Representative model: E-MCHL6-50-V220-W100
Save Up to
vs Standard Type 65% Shipping
886 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

+1
20 0
Spot Welding
D+2
2D

(5) Heat Generating Part (L-7) (2) 22
90±5
3L±2
500 Heat Insulating Plates Heaters / Temperature Sensors /

D Tolerance * The tolerance is the value of
the heat generating part. (10)
D(mm) Tolerance (mm)
6~10 -0.03
-0.06
EMaximum operating temperature: 600°C Material: Main Body: SUS321
EWire heat resistant temperature: 260°C Wire: Nickel (Ni) Heaters Cartridge
EWhen machining the metal block mounting holes, it is recommended that the one-sided clearance is 0.05mm or less. Wire Coating: PTFE
Part Number 3Length (L) 4Rated Voltage 5Rated Power Density P.1529
1Type 2Dia. (D) mm V Capacity W/cm 2
W
mm
50 220 100 10.6 Sensors Temperature
80 220 100 6.6
6
80 380 180 11.9
100 380 200 10.6 P.1537
50 220 100 8
80 380 200 10 Controllers Temperature
E-MCHL 8
100 220 200 8
100 380 300 11.9 P.1551
50 220 120 7.6
50 380 180 11.5
10
100 220 200 6.4 Plates Heat Insulation
100 380 300 9.6
Please order after selecting part number and parameters according to the selection steps 1 to 5. P.1555
Ordering
Example Part Number (1Type · 2Dia. (D)) - 3Length (L) - 4Rated Voltage - 5Rated Capacity
E-MCHL6 - 50 - V220 - W100
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type E-MCHL Keyword cartridge heater
