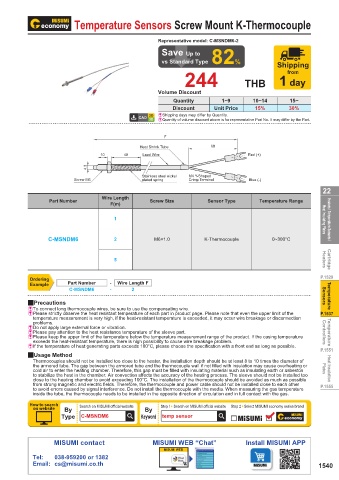

Page 1545 - MISUMI Thailand Economy Series

Temperature Sensors Screw Mount K-Thermocouple

Representative model: C-MSNDM6-2
Save Up to
vs Standard Type 82% Shipping
244 THB 1 day
from

Volume Discount
Quantity 1~9 10~14 15~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

F
Heat Shrink Tube 60
10 48 Lead Wire Red (+)
4.3
Stainless steel nickel M4 Y-Shaped
Screw M6 plated spring Crimp Terminal Blue (-)
22
Wire Length
Part Number Screw Size Sensor Type Temperature Range
F(m)
1 Heat Insulating Plates Heaters / Temperature Sensors /

C-MSNDM6 2 M6×1.0 K-Thermocouple 0~300°C

5 Heaters Cartridge

Ordering P.1529
Example Part Number - Wire Length F
C-MSNDM6 - 2

QPrecautions Sensors Temperature
E To connect long thermocouple wires, be sure to use the compensating wire.
E Please strictly observe the heat resistant temperature of each part in product page. Please note that even the upper limit of the P.1537
temperature measurement is very high, if the heat-resistant temperature is exceeded, it may occur wire breakage or disconnection
problems.
E Do not apply large external force or vibration.
E Please pay attention to the heat resistance temperature of the sleeve part. Controllers Temperature
E Please keep the upper limit of the temperature below the temperature measurement range of the product. If the casing temperature
exceeds the heat-resistant temperature, there is high possibility to cause wire breakage problem.
E If the temperature of heat generating parts exceeds 100°C, please choose the specification with a front end as long as possible. P.1551
QUsage Method
Thermocouples should not be installed too close to the heater, the installation depth should be at least 8 to 10 times the diameter of
the armored tube. The gap between the armored tube and the thermocouple wall if not filled with insulation may cause overheating or
cold air to enter the heating chamber. Therefore, this gap must be filled with insulating material such as insulating earth or asbestos Plates Heat Insulation
to stabilize the heat in the chamber. Air convection affects the accuracy of the heating process. The sleeve should not be installed too
close to the heating chamber to avoid exceeding 100°C. The installation of the thermocouple should be avoided as much as possible
from strong magnetic and electric fields. Therefore, the thermocouple and power cable should not be installed close to each other P.1555
to avoid errors caused by signal interference. Do not install the thermocouple with the media. When measuring the gas temperature
inside the tube, the thermocouple needs to be installed in the opposite direction of circulation and in full contact with the gas.
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-MSNDM6 Keyword temp sensor

MISUMI contact MISUMI WEB “Chat” Install MISUMI APP
MISUMI WEB
Tel: 038-959200 or 1382
Email: cs@misumi.co.th 1540
