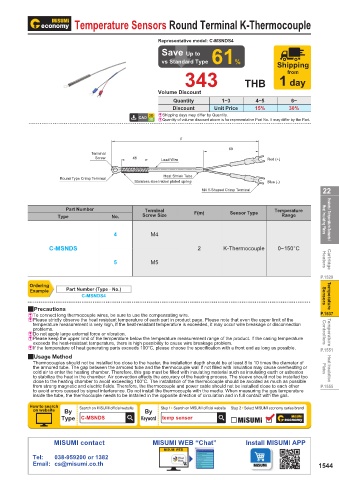

Page 1549 - MISUMI Thailand Economy Series

Temperature Sensors Round Terminal K-Thermocouple

Representative model: C-MSNDS4
Save Up to
vs Standard Type 61% Shipping
343 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

F
60
Terminal
Screw 48 Lead Wire Red (+)

Heat Shrink Tube
Round Type Crimp Terminal
Stainless steel nickel plated spring Blue (-)
M4 Y-Shaped Crimp Terminal 22

Part Number Terminal Temperature
Type No. Screw Size F(m) Sensor Type Range Heat Insulating Plates Heaters / Temperature Sensors /

4 M4
C-MSNDS 2 K-Thermocouple 0~150°C

5 M5 Heaters Cartridge

P.1529
Ordering
Example Part Number (Type · No.)
C-MSNDS4 Sensors Temperature
QPrecautions
E To connect long thermocouple wires, be sure to use the compensating wire. P.1537
E Please strictly observe the heat resistant temperature of each part in product page. Please note that even the upper limit of the
temperature measurement is very high, if the heat-resistant temperature is exceeded, it may occur wire breakage or disconnection
problems.
E Do not apply large external force or vibration. Controllers Temperature
E Please keep the upper limit of the temperature below the temperature measurement range of the product. If the casing temperature
exceeds the heat-resistant temperature, there is high possibility to cause wire breakage problem.
E If the temperature of heat generating parts exceeds 100°C, please choose the specification with a front end as long as possible. P.1551
QUsage Method
Thermocouples should not be installed too close to the heater, the installation depth should be at least 8 to 10 times the diameter of
the armored tube. The gap between the armored tube and the thermocouple wall if not filled with insulation may cause overheating or Plates Heat Insulation
cold air to enter the heating chamber. Therefore, this gap must be filled with insulating material such as insulating earth or asbestos
to stabilize the heat in the chamber. Air convection affects the accuracy of the heating process. The sleeve should not be installed too
close to the heating chamber to avoid exceeding 100°C. The installation of the thermocouple should be avoided as much as possible
from strong magnetic and electric fields. Therefore, the thermocouple and power cable should not be installed close to each other P.1555
to avoid errors caused by signal interference. Do not install the thermocouple with the media. When measuring the gas temperature
inside the tube, the thermocouple needs to be installed in the opposite direction of circulation and in full contact with the gas.
