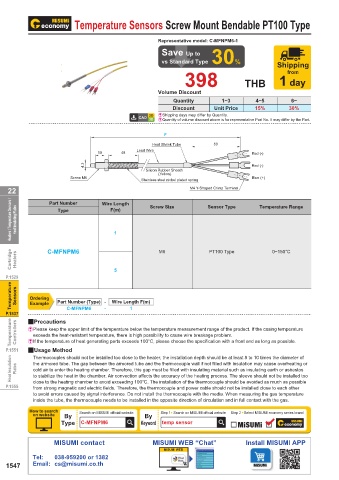

Page 1552 - MISUMI Thailand Economy Series

Temperature Sensors Screw Mount Bendable PT100 Type

Representative model: C-MFNPM6-1
Save Up to
vs Standard Type 30% Shipping
398 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

F
Heat Shrink Tube 60
Lead Wire
10 48 Red (-)
4.3 Red (-)
Silicon Rubber Sheath
(Yellow)
Screw M6 Stainless steel nickel plated spring Blue (+)
22 Part Number Wire Length M4 Y-Shaped Crimp Terminal
Heaters / Temperature Sensors / Heat Insulating Plates Type F(m) Screw Size Sensor Type Temperature Range

1

Cartridge Heaters C-MFNPM6 M6 PT100 Type 0~150°C

P.1529 5
Temperature Sensors Ordering Part Number (Type) - Wire Length F(m)

Example
P.1537 QPrecautions C-MFNPM6 - 1
Temperature Controllers E Please keep the upper limit of the temperature below the temperature measurement range of the product. If the casing temperature

exceeds the heat-resistant temperature, there is high possibility to cause wire breakage problem.

QUsage Method
P.1551 E If the temperature of heat generating parts exceeds 100°C, please choose the specification with a front end as long as possible.
Thermocouples should not be installed too close to the heater, the installation depth should be at least 8 to 10 times the diameter of
Heat Insulation Plates the armored tube. The gap between the armored tube and the thermocouple wall if not filled with insulation may cause overheating or
cold air to enter the heating chamber. Therefore, this gap must be filled with insulating material such as insulating earth or asbestos
to stabilize the heat in the chamber. Air convection affects the accuracy of the heating process. The sleeve should not be installed too
P.1555 close to the heating chamber to avoid exceeding 100°C. The installation of the thermocouple should be avoided as much as possible
from strong magnetic and electric fields. Therefore, the thermocouple and power cable should not be installed close to each other
to avoid errors caused by signal interference. Do not install the thermocouple with the media. When measuring the gas temperature
inside the tube, the thermocouple needs to be installed in the opposite direction of circulation and in full contact with the gas.
