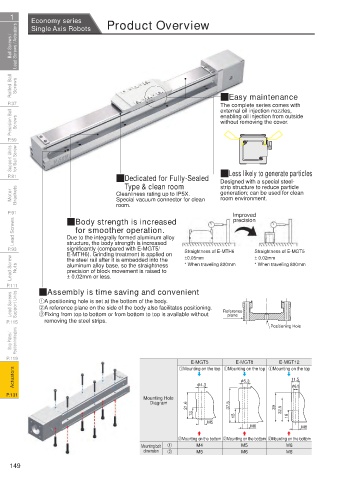

1 Economy series Product Overview Product Overview Single Axis Robots 1
Economy series
Single Axis Robots
Ball Screws / Lead Screws / Actuators Lead Screws / Actuators Ball Screws /

Rolled Ball Screws Screws Rolled Ball

P.37 QEasy maintenance P.37
The complete series comes with
external oil injection nozzles,
Precision Ball Screws enabling oil injection from outside Screws Precision Ball
without removing the cover.

P.59 P.59
Support Units for Ball Screw for Ball Screw Support Units

P.81 Q Dedicated for Fully-Sealed Q Less likely to generate particles P.81
Designed with a special steel-
Type & clean room
Motor Brackets Cleanliness rating up to IP5X. strip structure to reduce particle Brackets Motor
generation; can be used for clean
room environment.
Special vacuum connector for clean
room.
P.91 Q Body strength is increased Improved P.91
precision
Lead Screws Due to the integrally formed aluminum alloy Lead Screws
for smoother operation.

significantly (compared with E-MGT5/
P.93 structure, the body strength is increased Straightness of E-MTH6 Straightness of E-MGT5 P.93
E-MTH6). Grinding treatment is applied on
Lead Screw Nuts the steel rail after it is embedded into the * When traveling 800mm * When traveling 800mm Nuts Lead Screw
±0.05mm
± 0.02mm
aluminum alloy base, so the straightness
precision of block movement is raised to
± 0.02mm or less.
P.111 QAssembly is time saving and convenient P.111
Lead Screws Support Units 1A positioning hole is set at the bottom of the body. Reference Support Units Lead Screws
2A reference plane on the side of the body also facilitates positioning.
removing the steel strips.
P.115 3 Fixing from top to bottom or from bottom to top is available without plane P.115
Positioning Hole
Stop Plates / Position Indicators Position Indicators Stop Plates /

P.119 P.119
E-MGT5 E-MGT8 E-MGT12
1Mounting on the top 1Mounting on the top 1Mounting on the top
Actuators φ 4.3 φ 5.3 11.5 Actuators

φ 6.8
P.131 P.131
Mounting Hole
Diagram
21.6 37.5 39 32.5
13 15 16
M5
M6 M8
2Mounting on the bottom 2Mounting on the bottom 2Mounting on the bottom
Mounting bolt 1 M4 M5 M6
dimension 2 M5 M6 M8
149
