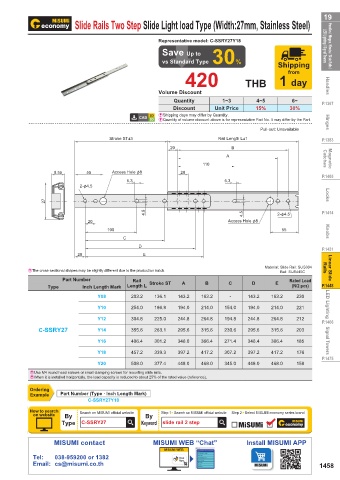

Slide Rails Two Step Slide Light load Type (Width:27mm, Stainless Steel)
Representative model: C-SSRY27Y18 LED Lighting / Signal Towers
Save Up to Handles / Hinges / Knobs / Slide Rails /
vs Standard Type 30% Shipping
420 THB 1 day
from

Volume Discount Handles
Quantity 1~3 4~5 6~ P.1367
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. Hinges
Pull-out: Unavailable
Stroke ST±3 Rail Length L±1 P.1383
20 B
A Catches
110 Magnetic
9.55 55 Access Hole φ8 20 P.1405
5.3 5.3
2-φ4.5

27 Locks
4.5 4.5 2-φ4.5 P.1414
20 Access Hole φ8
100 55 Knobs
C
D
P.1431
20 E
Material: Slide Rail: SUS304
E The cross-sectional shapes may be slightly different due to the production batch. Ball: SUS440C Rails Linear Slide
Part Number Rail Stroke ST A B C D E Rated Load
Type Inch Length Mark Length L (N/2 pcs) P.1448
Y08 203.2 136.1 143.2 163.2 - 143.2 163.2 230
Y10 254.0 186.9 194.0 214.0 154.0 194.0 214.0 221 LED Lighting
Y12 304.8 225.0 244.8 264.8 194.8 244.8 264.8 212
P.1466
C-SSRY27 Y14 355.6 263.1 295.6 315.6 230.6 295.6 315.6 203
Y16 406.4 301.2 346.0 366.4 271.4 346.4 366.4 185 Signal Towers
Y18 457.2 339.3 397.2 417.2 307.2 397.2 417.2 176
P.1475
Y20 508.0 377.4 448.0 468.0 345.0 448.0 468.0 158
E Use M4 round head screws or small clamping screws for mounting slide rails.
E When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
Ordering
Example Part Number (Type · Inch Length Mark)
C-SSRY27Y18
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-SSRY27 Keyword slide rail 2 step
