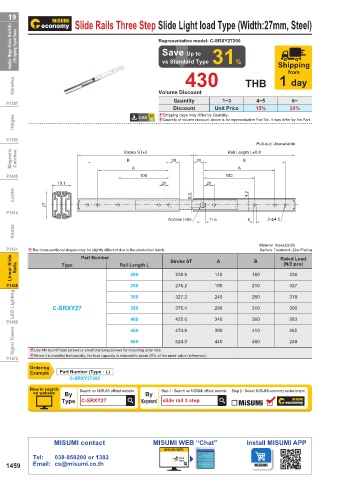

19 Slide Rails Three Step Slide Light load Type (Width:27mm, Steel)
Handles / Hinges / Knobs / Slide Rails / LED Lighting / Signal Towers Representative model: C-SRXY27200 Shipping
Save Up to
31%
vs Standard Type
430
from
Handles Volume Discount THB 1 day

Quantity 1~3 4~5 6~
P.1367
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
Hinges E Quantity of volume discount above is for representative Part No. It may differ by the Part.

P.1383
Pull-out: Unavailable
Magnetic Catches Stroke ST±3 20 20 Rail Length L±0.8
B
B
P.1405 A 100 100 A
19.1 20 20
Locks 8.9 4.2

27
P.1414
Access Hole 11.5 6 2-φ4.5
Knobs

Material: Steel(Q235)
P.1431 E The cross-sectional shapes may be slightly different due to the production batch. Surface Treatment: Zinc Plating
Linear Slide Rails Type Rail Length L Stroke ST 140 160 (N/2 pcs)
Part Number
Rated Load
A
B
228.8
336
200
P.1448 250 276.2 190 210 327
LED Lighting C-SRXY27 300 327.2 240 260 318
376.4
290
350
310
300
P.1466 400 425.6 340 360 283
Signal Towers 500 524.0 440 460 248
410
265
390
450
474.8
E When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
P.1475 E Use M4 round head screws or small clamping screws for mounting slide rails.
Ordering
Example Part Number (Type · L)
C-SRXY27200
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-SRXY27 Keyword slide rail 3 step
