19

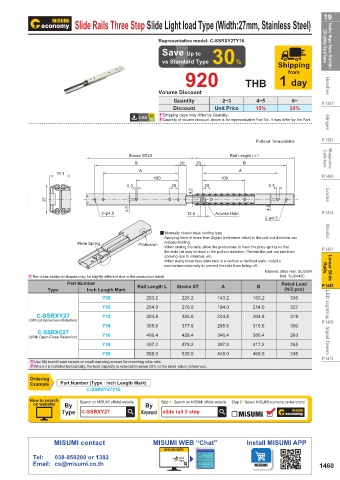

Slide Rails Three Step Slide Light load Type (Width:27mm, Stainless Steel)
Representative model: C-SSRXY27Y16 LED Lighting / Signal Towers
Save Up to Handles / Hinges / Knobs / Slide Rails /
vs Standard Type 30% Shipping
920 THB 1 day
from

Volume Discount Handles
Quantity 2~3 4~5 6~ P.1367
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. Hinges

Pull-out: Unavailable P.1383

Stroke ST±3 Rail Length L±1 Catches
B 20 20 B Magnetic
A A
19.1
100 100 P.1405
5.3 20 20 5.3
9.5
27 Locks
4.5 4.5
2-φ4.5 12.5 Access Hole P.1414
2-φ4.5

Q Normally closed state holding type Knobs
· Applying force of more than 2kg/pc (reference value) in the pull-out direction can
release holding.
Plate Spring Protrusion · When storing the rails, allow the protrusions to hook the plate spring so that
the slide rail may be kept in the pull-out direction. Prevent the pull-out part from P.1431
opening due to vibration, etc.
· When using linear type slide rails in a vertical or inclined state, install a
mechanism externally to prevent the rails from falling off.
Material: Slide Rail: SUS304 Rails Linear Slide
E The cross-sectional shapes may be slightly different due to the production batch. Ball: SUS440C
Part Number Rail Length L Stroke ST A B Rated Load P.1448
Type Inch Length Mark (N/2 pcs)
Y08 203.2 225.2 143.2 163.2 336
Y10 254.0 276.0 194.0 214.0 327 LED Lighting
C-SSRXY27 Y12 304.8 326.8 244.8 264.8 318
(Without Open-Close Retention) P.1466
Y14 355.6 377.6 295.6 315.6 300
C-SSRXC27
(With Open-Close Retention) Y16 406.4 428.4 346.4 366.4 283
Y18 457.2 479.2 397.2 417.2 265 Signal Towers
Y20 508.0 530.0 448.0 468.0 248
P.1475
E Use M4 round head screws or small clamping screws for mounting slide rails.
E When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
Ordering
Example Part Number (Type · Inch Length Mark)
C-SSRXY27Y16
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-SSRXY27 Keyword slide rail 3 step
