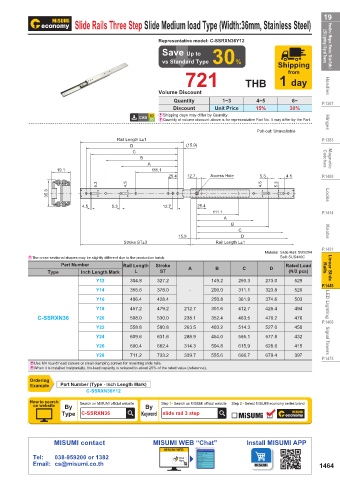

Slide Rails Three Step Slide Medium load Type (Width:36mm, Stainless Steel)
Representative model: C-SSRXN36Y12 LED Lighting / Signal Towers
Save Up to Handles / Hinges / Knobs / Slide Rails /
vs Standard Type 30% Shipping
721 THB 1 day
from

Volume Discount Handles
Quantity 1~3 4~5 6~ P.1367
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. Hinges
Pull-out: Unavailable
Rail Length L±1 P.1383
D (15.9)
C
B Catches Magnetic
A
19.1 111.1
25.4 12.7 Access Hole 5.3 4.5 P.1405
5.3 4.5 4.5 5.3
35.3 Locks

4.5 5.3 12.7 25.4
111.1 P.1414
A
B
C Knobs
15.9 D
Stroke ST±3 Rail Length L±1
P.1431
Material: Slide Rail: SUS304
E The cross-sectional shapes may be slightly different due to the production batch. Ball: SUS440C
Part Number Rail Length Stroke Rated Load
Type Inch Length Mark L ST A B C D (N/2 pcs) Rails Linear Slide
Y12 304.8 327.2 149.2 260.3 273.0 529
P.1448
Y14 355.6 378.0 - 200.0 311.1 323.8 520
Y16 406.4 428.4 250.8 361.9 374.6 503
Y18 457.2 479.2 212.7 301.6 412.7 425.4 494 LED Lighting
C-SSRXN36 Y20 508.0 530.0 238.1 352.4 463.5 476.2 476
P.1466
Y22 558.8 580.8 263.5 403.2 514.3 527.0 450
Y24 609.6 631.6 288.9 454.0 565.1 577.8 432 Signal Towers
Y26 660.4 682.4 314.3 504.8 615.9 628.6 415
Y28 711.2 733.2 339.7 555.6 666.7 679.4 397
P.1475
E Use M4 round head screws or small clamping screws for mounting slide rails.
E When it is installed horizontally, the load capacity is reduced to about 25% of the rated value (reference).
Ordering
Example Part Number (Type · Inch Length Mark)
C-SSRXN36Y12
