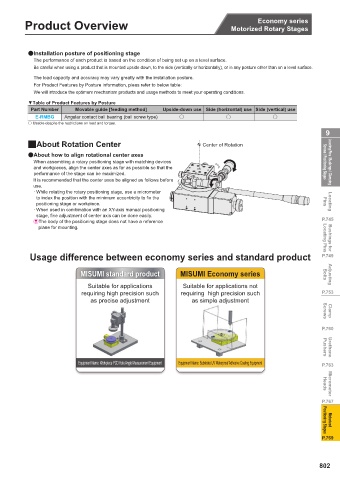

Economy series Product Overview Product Overview Economy series
Motorized Rotary Stages Motorized Rotary Stages
I Installation posture of positioning stage
The performance of each product is based on the condition of being set up on a level surface.
Be careful when using a product that is mounted upside down, to the side (vertically or horizontally), or in any posture other than on a level surface.
The load capacity and accuracy may vary greatly with the installation posture.
For Product Features by Posture information, pleas refer to below table:
We will introduce the optimum mechanism products and usage methods to meet your operating conditions.
▼Table of Product Features by Posture
Part Number Movable guide [feeding method] Upside-down use Side (horizontal) use Side (vertical) use
E-RMBG Angular contact ball bearing (ball screw type) G G G
G Usable despite the restrictions on load and torque.
9
QAbout Rotation Center Center of Rotation

I About how to align rotational center axes
When assembling a rotary positioning stage with matching devices Screws / Positioning Stages Locating Pins / Bushings / Clamping
and workpieces, align the center axes as far as possible so that the
performance of the stage can be maximized.
It is recommended that the center axes be aligned as follows before
use.
· While rotating the rotary positioning stage, use a micrometer
to index the position with the minimum eccentricity to fix the
positioning stage or workpiece. Pins Locating
· When used in combination with an XY-axis manual positioning
stage, fine adjustment of center axis can be done easily.
E The body of the positioning stage does not have a reference P.745
plane for mounting. Locating Pins Bushings for

Usage difference between economy series and standard product P.749

MISUMI standard product MISUMI Economy series Bolts Adjusting
Suitable for applications Suitable for applications not
requiring high precision such requiring high precision such P.753
as precise adjustment as simple adjustment Screws Clamp

P.760

Pushers
Equipment Name: Workpiece PCD Hole Angle Measurement Equipment Equipment Name: Substrate UV Waterproof Adhesive Coating Equipment P.763
