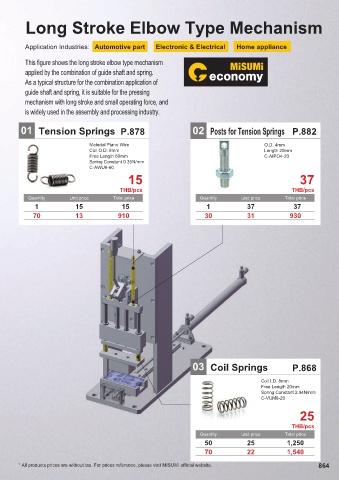

Long Stroke Elbow Type Mechanism

Application Industries: Automotive part Electronic & Electrical Home appliance

This figure shows the long stroke elbow type mechanism
applied by the combination of guide shaft and spring.
As a typical structure for the combination application of
guide shaft and spring, it is suitable for the pressing
mechanism with long stroke and small operating force, and
is widely used in the assembly and processing industry.

01 Tension Springs P.878 02 Posts for Tension Springs P.882

Material Piano Wire O.D. 4mm
Coil O.D. 8mm Length 20mm
Free Length 60mm C-AIPO4-20
Spring Constant 0.35N/mm
C-AWU8-60
15 37

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 15 15 1 37 37
70 13 910 30 31 930

03 Coil Springs P.868

Coil I.D. 8mm
Free Length 20mm
Spring Constant 2.94N/mm
C-VUM8-20
25

THB/pcs
Quantity Unit price Total price
50 25 1,250
70 22 1,540

864
* All products prices are without tax. For prices reference, please visit MISUMI official website. 864
