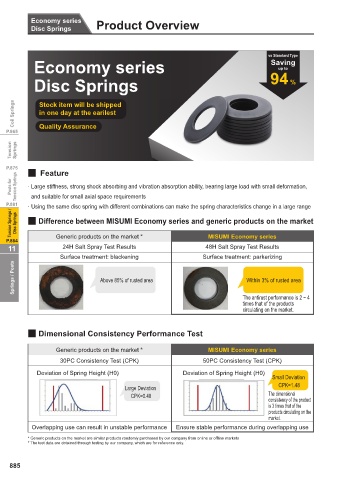

Economy series Product Overview
Disc Springs

vs Standard Type
Economy series Saving
up to
Disc Springs 94 %

Coil Springs Stock item will be shipped
in one day at the earilest

P.865 Quality Assurance

Tension Springs

P.875 Q Feature

Posts for Tension Springs · Large stiffness, strong shock absorbing and vibration absorption ability, bearing large load with small deformation,
and suitable for small axial space requirements
P.881 · Using the same disc spring with different combinations can make the spring characteristics change in a large range
Torsion Springs / Disc Springs Q Difference between MISUMI Economy series and generic products on the market

P.884 Generic products on the market * MISUMI Economy series
11 24H Salt Spray Test Results 48H Salt Spray Test Results
Surface treatment: blackening Surface treatment: parkerizing
Springs / Posts Above 85% of rusted area Within 3% of rusted area

The antirust performance is 2 ~ 4
times that of the products
circulating on the market.

Q Dimensional Consistency Performance Test

Generic products on the market * MISUMI Economy series
30PC Consistency Test (CPK) 50PC Consistency Test (CPK)
Deviation of Spring Height (H0) Deviation of Spring Height (H0)
Small Deviation
Large Deviation CPK=1.48
CPK=0.48 The dimensional
consistency of the product
is 3 times that of the
products circulating on the
market.
Overlapping use can result in unstable performance Ensure stable performance during overlapping use

* Generic products on the market are similar products randomly purchased by our company from online or offline markets
* The test data are obtained through testing by our company, which are for reference only.
