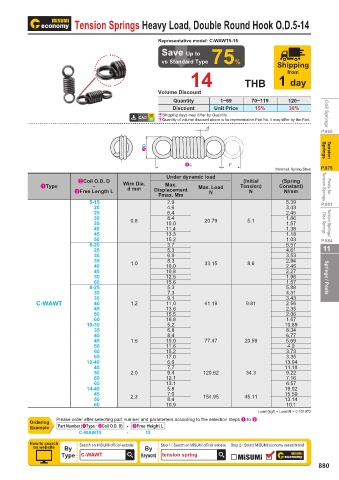

Page 885 - MISUMI Thailand Economy Series

Tension Springs Heavy Load, Double Round Hook O.D.5-14

Representative model: C-WAWT5-15
Save Up to
vs Standard Type 75% Shipping
14 THB 1 day
from

Volume Discount
Quantity 1~69 70~119 120~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity. Coil Springs
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
d
P.865
2D Springs Tension

3L F
Material: Spring Steel P.875
Under dynamic load
2Coil O.D. D (Initial (Spring
1Type - Wire Dia. Max. Max. Load Tension) Constant) Tension Springs Posts for
d mm
3Free Length L Displacement N N N/mm
Fmax. Mm
5-15 2.9 5.39 P.881
20 4.6 3.43
25 6.4 2.45
30 8.4 1.86
35 0.8 10.0 20.79 5.1 1.57 Disc Springs Torsion Springs/
40 11.4 1.38
45 13.3 1.18
50 15.2 1.03 P.884
6-20 3.7 6.57
25 5.3 4.61 11
30 6.9 3.53
35 1.0 8.3 33.15 8.6 2.94
40 10.0 2.45
45 10.8 2.27
50 12.5 1.96 Springs / Posts
60 15.6 1.57
8-25 5.3 5.88
30 7.3 4.31
35 9.1 3.43
C-WAWT 40 1.2 11.0 41.19 9.81 2.56
45 13.6 2.35
50 15.5 2.06
60 18.8 1.67
10-30 5.2 10.89
35 6.8 8.34
40 8.4 6.77
45 1.6 10.0 77.47 20.59 5.69
50 11.6 4.9
60 15.2 3.73
65 17.0 3.35
12-40 6.6 13.04
45 7.7 11.18
50 2.0 9.4 120.62 34.3 9.22
60 12.1 7.16
65 13.1 6.57
14-40 5.8 19.02
45 7.0 15.59
50 2.3 8.4 154.95 45.11 13.14
60 10.9 10.1
Load {kgf} = Load N × 0.101972
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Coil O.D. D) - 3Free Height L
C-WAWT5 - 15
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-WAWT Keyword tension spring
