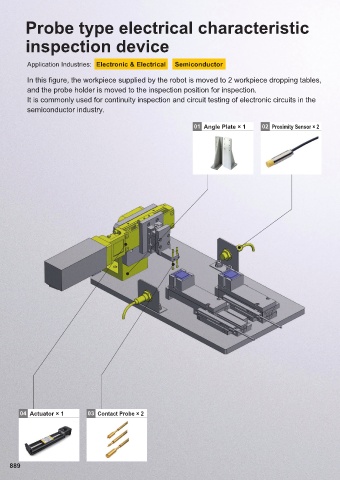

Probe type electrical characteristic Reference price
inspection device

Application Industries: Electronic & Electrical Semiconductor

In this figure, the workpiece supplied by the robot is moved to 2 workpiece dropping tables,
and the probe holder is moved to the inspection position for inspection.
It is commonly used for continuity inspection and circuit testing of electronic circuits in the
semiconductor industry.

01 Angle Plate × 1 02 Proximity Sensor × 2

01 Angle Plate × 1 P.944 02 Proximity Sensor × 2 P.898
Height 200mm Output Pattern NPN
Length 60mm (Normally Open)
C-AIKK200-100 Detection Distance 4.0mm
Detection Head Specification
M8×1.0mm
C-2C08-N11
1,511 571

THB/pcs THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 1,511 1,511 1 571 571
4 1,284 5,136 4 486 1,944

03 Contact Probe × 2 P.926 04 Actuator × 1 P.133

Tip Shape A Shape Standard
Probe O.D. 0.8mm Base length 100mm
C-NP58-A Positioning Stage Long Block 1 pcs
Motor Bracket F0
C-KS4001-B1-100-F0
928 11,597
04 Actuator × 1 03 Contact Probe × 2
THB/pack THB/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 928 928 1 11,597 11,597
4 789 3,156 4 11,244 44,976

* All products prices are without tax. For prices reference, please visit MISUMI official website.
889 * The reference price is estimated based on the quantity or approximate length of the product used in the example and is not
calculated using the price for the minimum order quantity.
