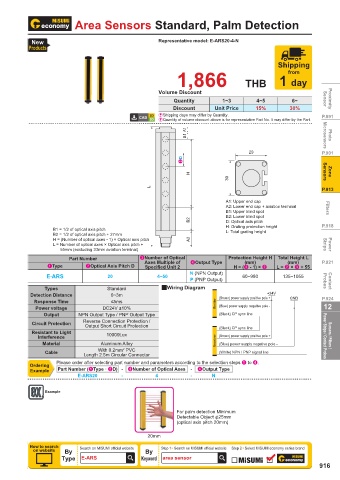

Area Sensors Standard, Palm Detection
New Representative model: E-ARS20-4-N
Products
Shipping
1,866 THB 1 day
from

Volume Discount
Quantity 1~3 4~5 6~ Sensor Proximity
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity. P.891
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
A1
B1 Microsensors Photo

29 P.901
2D

H Sensors Zone
30
L
P.913
A1: Upper end cap
A2: Lower end cap + aviation terminal Filters
B1: Upper blind spot
B2: Lower blind spot
B2 D: Optical axis pitch
H: Grating protection height P.918
B1 = 1/2 of optical axis pitch L: Total grating height
B2 = 1/2 of optical axis pitch + 27mm
H = (Number of optical axes - 1) × Optical axis pitch A2
L = Number of optical axes × Optical axis pitch + Strips Power
55mm (excluding 33mm aviation terminal)
Part Number 3Number of Optical Protection Height H Total Height L
(mm)
(mm)
1Type 2Optical Axis Pitch D Axes Multiple of 4Output Type H = (3 - 1) × 2 L = 2 × 3 + 55 P.921
Specified Unit 2
E-ARS 20 4~50 N (NPN Output) 60~980 135~1055
P (PNP Output) Probes Contact
Types Standard QWiring Diagram
Detection Distance 0~3m +24V GND
Response Time ≤5ms Emitter (Brown) power supply positive pole + P.924
Power voltage DC24V ±10% (Blue) power supply negative pole - 12
Output NPN Output Type / PNP Output Type (Black) CP sync line
Reverse Connection Protection /
Circuit Protection Output Short Circuit Protection (Black) CP sync line
Resistant to Light
Interference 10000Lux (Brown) power supply positive pole + Power Strips / Contact Probes Sensors / Filters /
Material Aluminum Alloy Receiver (Blue) power supply negative pole -
With 0.2mm PVC
2
Cable Length 2.5m Circular Connector (White) NPN / PNP signal line
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2D) - 3Number of Optical Axes - 4Output Type
E-ARS20 - 4 - N
Example

For palm detection Minimum
Detectable Object φ25mm
(optical axis pitch 20mm)
20mm
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type E-ARS Keyword area sensor
