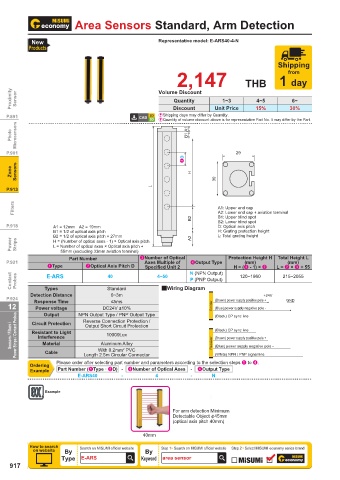

Area Sensors Standard, Arm Detection Product Overview Economy series
Noise Filter
New Representative model: E-ARS40-4-N
Products
Shipping
2,147 THB 1 day
from

Proximity Sensor Volume Discount 1~3 4~5 6~
Quantity
Discount
Unit Price
P.891 E Shipping days may differ by Quantity. 15% 30%
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Photo Microsensors A1 B1

P.901 29
2D
Zone Sensors H 30

P.913 L

Filters A1: Upper end cap
A2: Lower end cap + aviation terminal
B2 B1: Upper blind spot
B2: Lower blind spot
P.918 A1 = 12mm A2 = 19mm D: Optical axis pitch
B1 = 1/2 of optical axis pitch H: Grating protection height
B2 = 1/2 of optical axis pitch + 27mm A2 L: Total grating height
Power Strips H = (Number of optical axes - 1) × Optical axis pitch
L = Number of optical axes × Optical axis pitch +
55mm (excluding 33mm aviation terminal)
Part Number 3Number of Optical Protection Height H Total Height L
P.921 Axes Multiple of 4Output Type (mm) (mm)
1Type 2Optical Axis Pitch D Specified Unit 2 N (NPN Output) H = (3 - 1) × 2 L = 2 × 3 + 55
Contact Probes E-ARS 40 4~50 P (PNP Output) 120~1960 215~2055
QWiring Diagram
Types
Detection Distance Standard +24V
0~3m
P.924 Response Time ≤5ms GND
12 Power voltage NPN Output Type / PNP Output Type Emitter (Brown) power supply positive pole +
DC24V ±10%
(Blue) power supply negative pole -
Output
(Black) CP sync line
Sensors / Filters / Power Strips / Contact Probes Circuit Protection Reverse Connection Protection / Receiver (Black) CP sync line
Output Short Circuit Protection
Resistant to Light
10000Lux
Interference
(Brown) power supply positive pole +
Material
Aluminum Alloy
(Blue) power supply negative pole -
With 0.2mm PVC
2
Cable
Length 2.5m Circular Connector
(White) NPN / PNP signal line
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2D) - 3Number of Optical Axes - 4Output Type
E-ARS40 - 4 - N
Example
For arm detection Minimum
Detectable Object φ45mm
(optical axis pitch 40mm)
40mm
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type E-ARS Keyword area sensor
