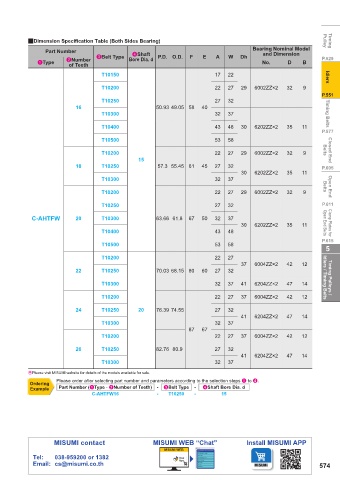

QDimension Specification Table (Both Sides Bearing) Pulley Timing
Part Number 3Belt Type 4Shaft P.D. O.D. F E A W Dh Bearing Nominal Model
and Dimension
1Type 2Number Bore Dia. d No. D B P.529
of Teeth
T10150 17 22 Idlers

T10200 22 27 29 6002ZZ×2 32 9
P.551
T10250 27 32
16 50.93 49.05 58 40
T10300 32 37 Timing Belts
T10400 43 48 30 6202ZZ×2 35 11
P.577
T10500 53 58
T10200 22 27 29 6002ZZ×2 32 9 Belts Closed End
15
18 T10250 57.3 55.45 61 45 27 32 P.605
30 6202ZZ×2 35 11
T10300 32 37

T10200 22 27 29 6002ZZ×2 32 9 Belts Open End
T10250 27 32 P.611

C-AHTFW 20 T10300 63.66 61.8 67 50 32 37
30 6202ZZ×2 35 11 Open End Belts Clamp Plates for
T10400 43 48
P.615
T10500 53 58
5
T10200 22 27
37 6004ZZ×2 42 12
22 T10250 70.03 68.15 80 60 27 32
T10300 32 37 41 6204ZZ×2 47 14 Idlers / Timing Belts Timing Pulleys /

T10200 22 27 37 6004ZZ×2 42 12
24 T10250 20 76.39 74.55 27 32
41 6204ZZ×2 47 14
T10300 32 37
87 67
T10200 22 27 37 6004ZZ×2 42 12

26 T10250 82.76 80.9 27 32
41 6204ZZ×2 47 14
T10300 32 37
E Please visit MISUMI website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2Number of Teeth) - 3Belt Type - 4Shaft Bore Dia. d
C-AHTFW16 - T10250 - 15
