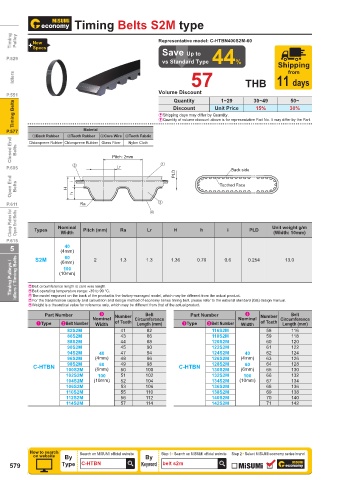

Timing Belts S2M type
Timing Pulley New Representative model: C-HTBN400S2M-60
Specs
Save Up to
P.529
vs Standard Type 44% Shipping
from
Idlers 57 THB 11 days

Volume Discount
P.551 Quantity 1~29 30~49 50~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Unit Price
Discount
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Back Rubber 2Tooth Rubber 3Core Wire 4Tooth Fabric
Closed End Belts Chloroprene Rubber Chloroprene Rubber Glass Fiber Nylon Cloth

Pitch: 2mm
P.605 3 Lr 1 PLD Back side
Open End Belts H i h Toothed Face

P.611 Ra 4 2
Clamp Plates for Open End Belts Types Nominal Pitch (mm) Ra Lr H h i PLD Unit weight g/m

P.615 Width (Width: 10mm)
5 S2M (4mm) 2 1.3 1.3 1.36 0.76 0.6 0.254 13.0
40
60
Timing Pulleys / Idlers / Timing Belts EBelt circumference length is core wire length.
(6mm)
100
(10mm)

EBelt operating temperature range: -30 to 90 °C.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
3
3
Part Number Nominal Number Belt Part Number Nominal Number Belt
1Type 2Belt Number Width of Teeth Circumference 1Type 2Belt Number Width of Teeth Circumference
Length (mm)
Length (mm)
82S2M 41 82 116S2M 58 116
86S2M 43 86 118S2M 59 118
88S2M 44 88 120S2M 60 120
90S2M 45 90 122S2M 61 122
94S2M 40 47 94 124S2M 40 62 124
96S2M (4mm) 48 96 126S2M (4mm) 63 126
C-HTBN 98S2M 60 49 98 C-HTBN 128S2M 60 64 128
100S2M (6mm) 50 100 130S2M (6mm) 65 130
102S2M 100 51 102 132S2M 100 66 132
104S2M (10mm) 52 104 134S2M (10mm) 67 134
106S2M 53 106 136S2M 68 136
110S2M 55 110 138S2M 69 138
112S2M 56 112 140S2M 70 140
114S2M 57 114 142S2M 71 142
